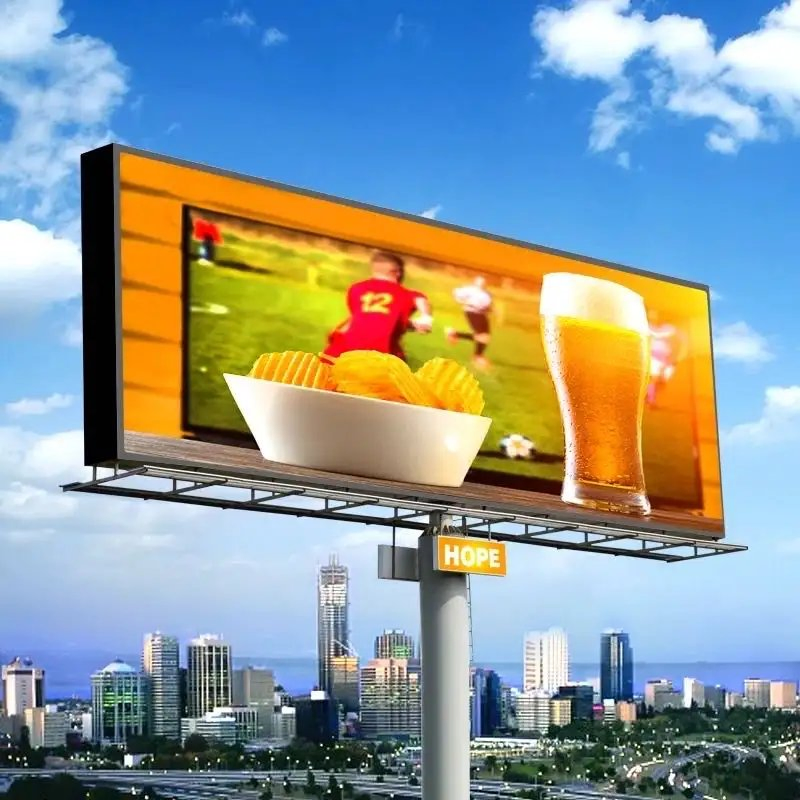

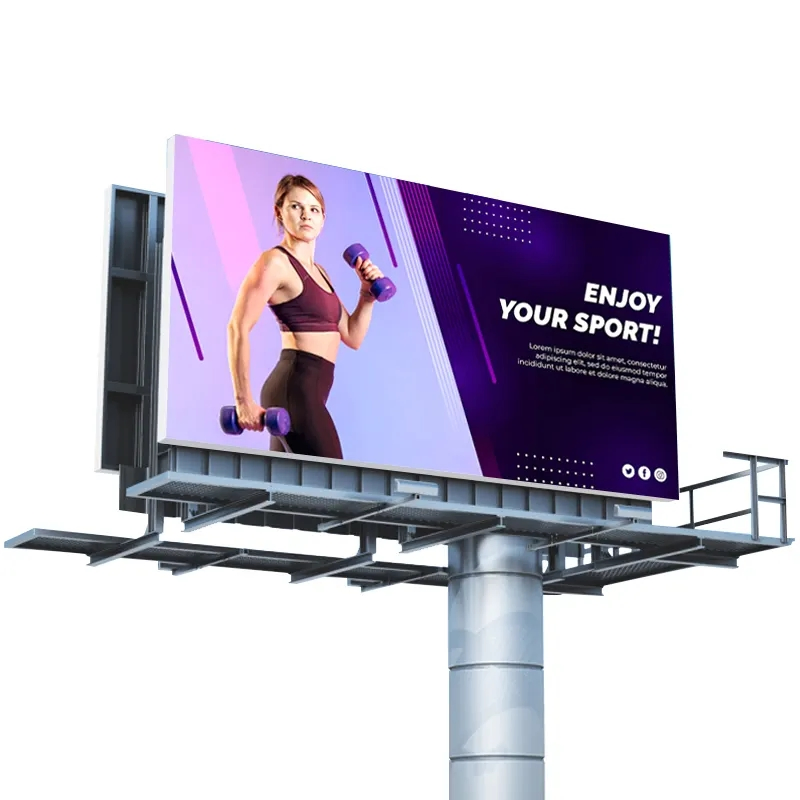

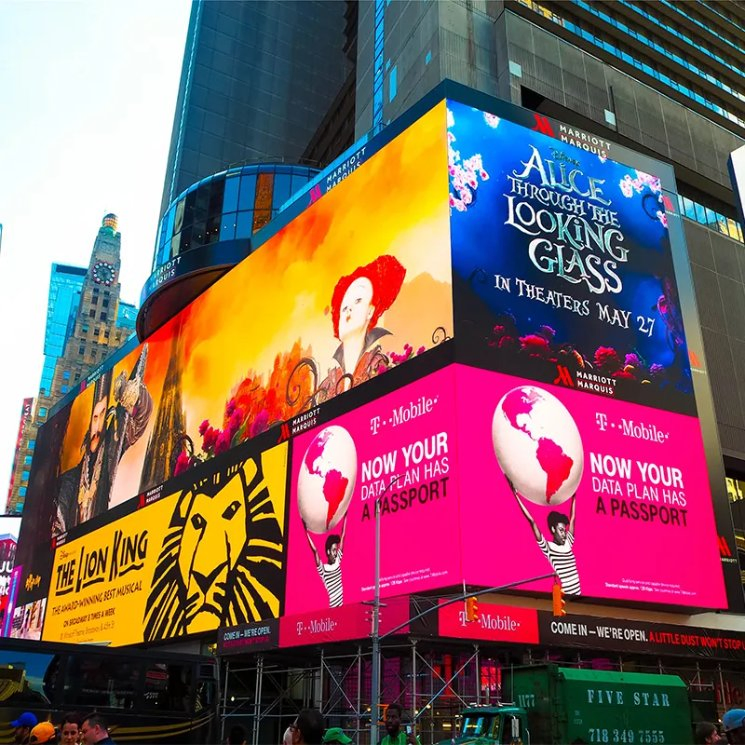

Super Large Size Outdoor LED Display Can Provide Huge Display Area Suitable for Large Scale Publicity Display in Outdoor Plaza Commercial Center and Other Place

Overview - Basic Information

Model NO.

AF6.67

Pixel Pitch

6.67mm

Pixel Configuration

1R, 1G, 1B

Display Function

Video, Image, Text

Average Power

168W/M2

Pixel Density

22500DOT/M2

Scanning Mode

1/6s

Display Type

LED Video Display

Application

Advertising

Certification

CE, RoHS, CCC

Cabinet Material

Die-Cast Aluminum

Brightness

7500CD/M2

Contrast Ratio

17000:1

Gray Scale

16bits

Lifespan(H)

50000

HS Code

8528591090

Packaging & Delivery

Package Size

96.00cm * 96.00cm * 9.20cm

Gross Weight

24.500kg

Transport Package

Wooden Case

Product Features

(1) Four-level energy-saving technology

• Level 1: Dynamic energy saving - drive circuit turns off when no signal is displayed.
• Level 2: Black screen energy saving - consumption current drops from 6mA to 0.6mA.
• Level 3: Full-screen energy saving - consumption drops to 0.5mA after 300ms low level.
• Level 4: Shunt power supply - reduces forward voltage drop and internal resistance.

(2) High-definition Visual Display

Refresh rate up to 3840Hz with 16bit grayscale. SMD LED beads ensure realistic color consistency and a wide viewing angle of over 140°.

(3) Modular Structural Optimization

Supports floor, hanging, and wall mounting. Features modular design for modules, cases, and power boxes with front and rear maintenance capabilities.

(4) Stable & High Protection

IP66 protection grade with all-aluminum design. Corrosion-resistant, flame retardant, and moisture-resistant. Operates from -40ºC to 80ºC, ideal for seaside environments.

Technical Specifications

Parameter Name	P4.4	P5.7	P6.67	P10
Pixel Structure (SMD)	1921	2727	2727	3535
Pixel pitch (mm)	4.4mm	5.7mm	6.67mm	10mm
Module size (mm)	480*320	480*320	480*320	480*320
Cabinet resolution	216*216	168*168	144*144	96*96
Pixel density (dots/m²)	50625	30625	22500	10000
Brightness (cd/m²)	5000	5500	7500	7500
Refresh Frequency (Hz)	3840
IP Rating	IP66
Viewing Angle	140° / 120°

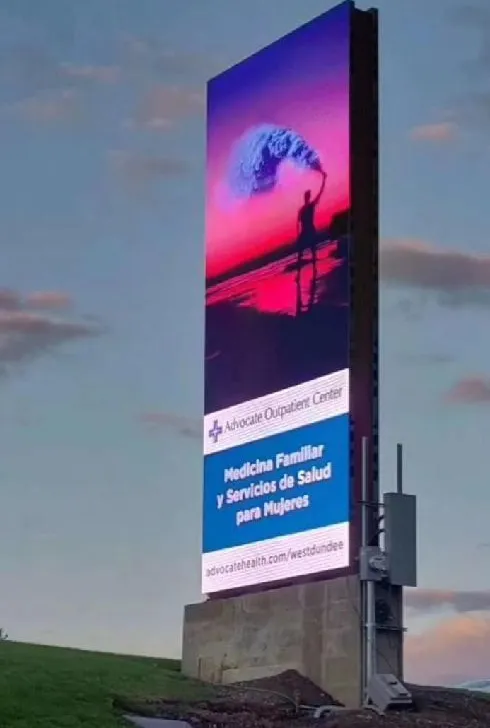

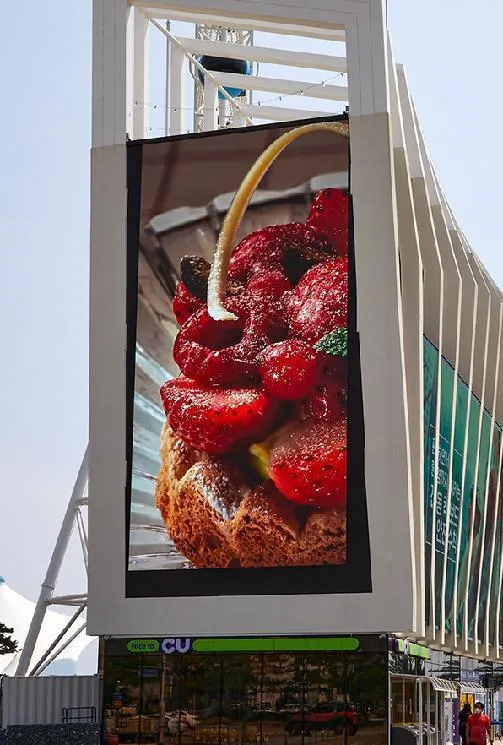

Product Gallery

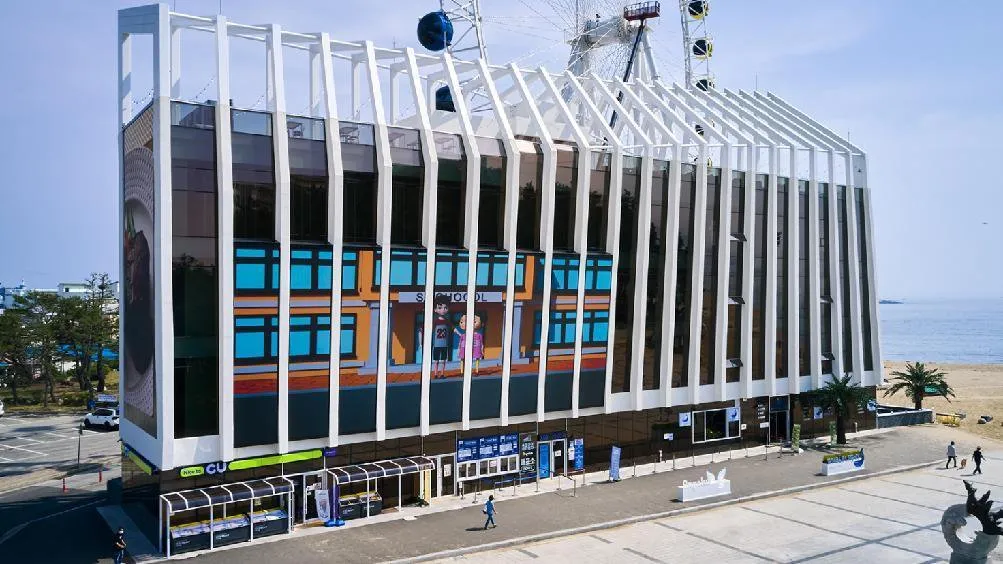

Outdoor LED Display Large Scale Publicity

Manufacturing & Factory

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a professional LED display manufacturer focusing on high-quality outdoor and indoor solutions.

Q: How can I get technical support?

A: We provide comprehensive technical support, including remote video control and online guidance.

Q: What are your payment terms and delivery time?

A: We typically accept T/T with a 30% deposit in advance and 70% before delivery. The standard lead time is approximately 20 days.

Q: How long is the warranty period?

A: For non-artificial damage, our standard warranty period is 1 year.

Q: How do you handle freight costs?

A: Shipping costs depend on the total weight and volume. We select the most cost-effective and safest shipping method based on your order quantity.

Q: Does the screen support front maintenance?

A: Yes, our modular design supports both front and rear maintenance for easier servicing.
