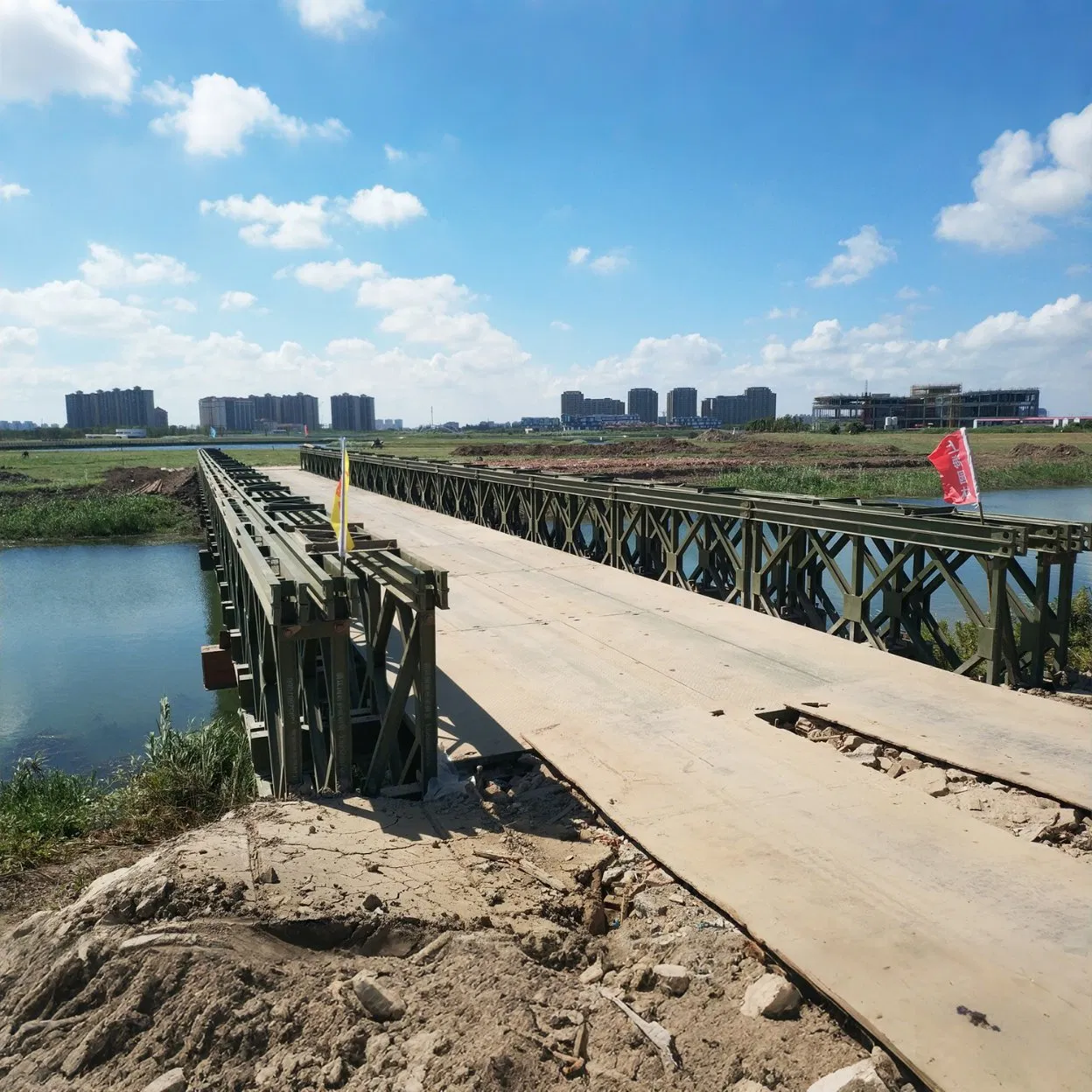

Prefabricated Temporary Modular Bridge/Modular Steel Bridges for Sale

Customization: Available
After-sales Service: Installation Instructions
Warranty: 6 Months

Product Description

i

Basic Specifications

Model NO.
CB321
Certification
GB, ASTM
Life
Semi-Permanent Bridge
Across Way
Open Bridge
Lane Position
Half Through Bridge
Usage
Over Water Bridge, Highway Bridge, Footbridge
Scale
Middle Bridge
Stress Characteristics
Beam Bridge
Material
Steel Bridge
Structure Type
Steel Bridge
Color
Green, Grey, Orange, Red
Type
Truss Bridge
Net Width
3.15m - 10.5m
Origin
China
Production Capacity
50000 Pieces/Year
P

Temporary Modular Steel Bridges

CB321(100) Truss Press Limited Table
No. Internal Force Not Reinforced Model Reinforced Model
SSDSTSDDR SSRDSRTSRDDR
321(100) Standard Truss Moment(kN.m) 788.21576.42246.43265.4 1687.533754809.46750
321(100) Standard Truss Shear (kN) 245.2490.5698.9490.5 245.2490.5698.9490.5
321 (100) Geometric Characteristics Table (Half bridge)
Type No. Geometric Characteristics Not Reinforced Model Reinforced Model
SSDSTSDDR SSRDSRTSRDDR
321(100) Section properties(cm3) 3578.57157.110735.614817.9 7699.115398.323097.430641.7
321(100) Moment of inertia(cm4) 250497.2500994.4751491.62148588.8 577434.41154868.81732303.24596255.2
C

Project Cases

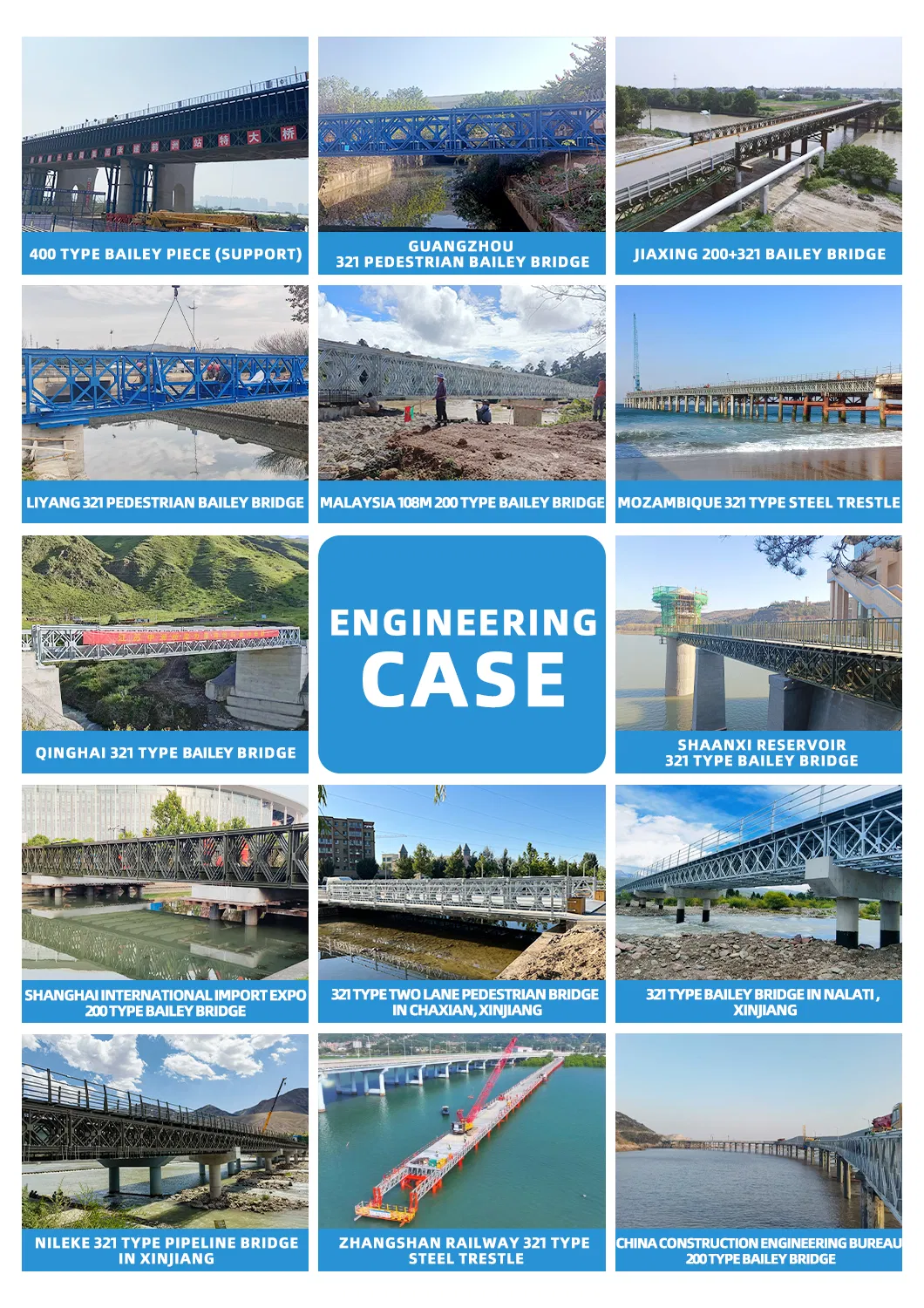

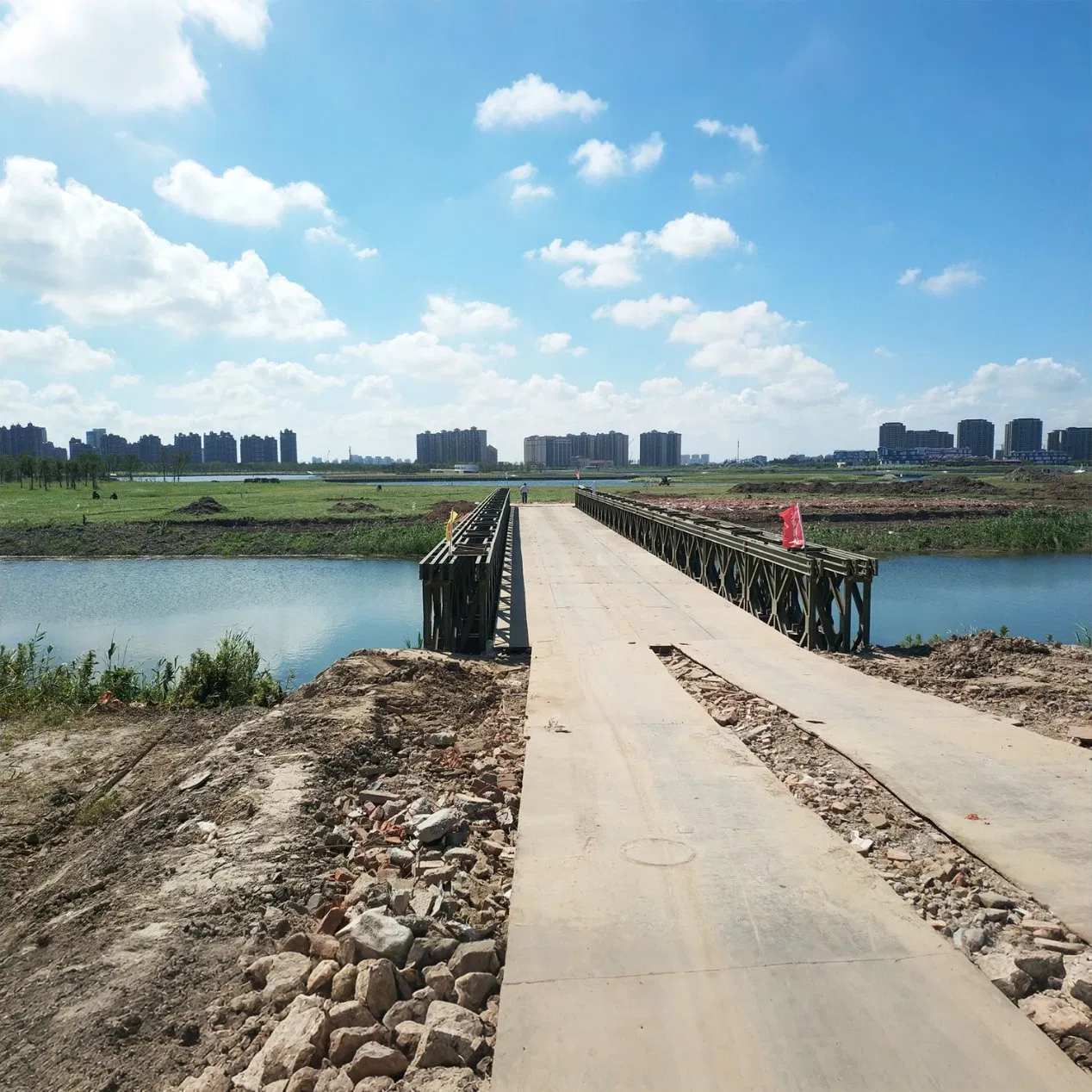

Modular Steel Bridge Project
T

Technical Specification

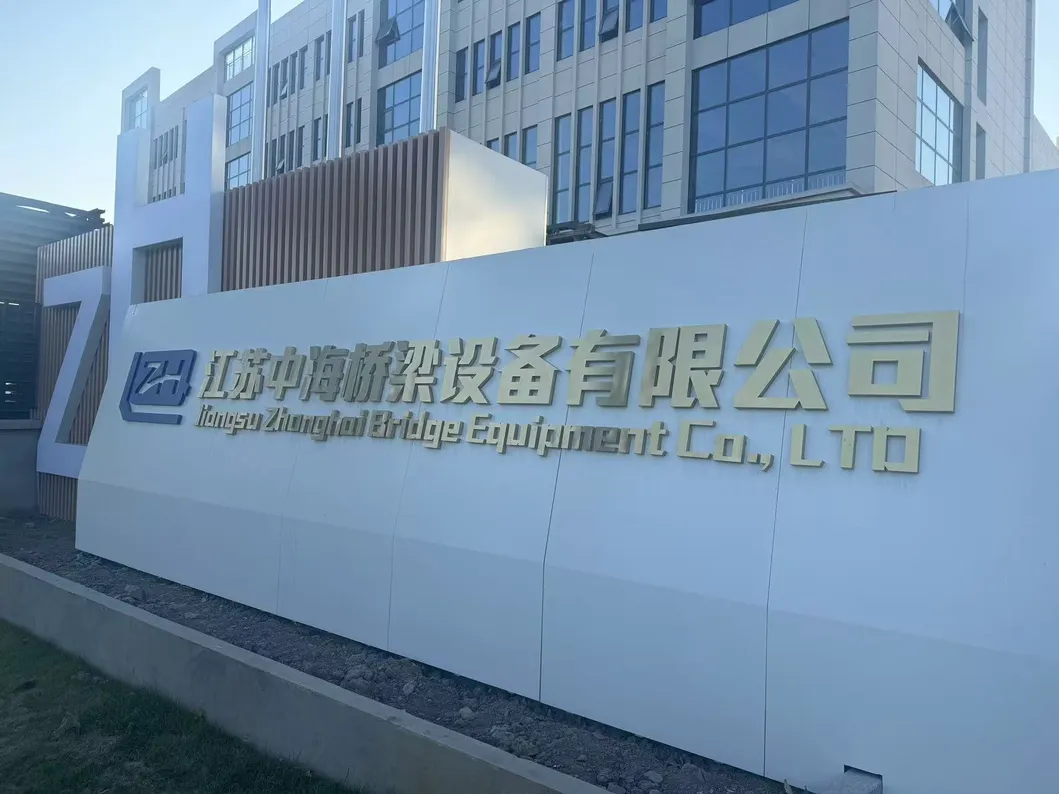

Bridge Construction
  • Production Capacity: 60000 tons/year
  • Standards: GB, ASTM, DIN, JIS, AISI, BS, SGS, BV
  • Dimensions: Standard / Customized
  • Length: 9.144m to 60.96m
  • Steel Grade: Q355B/Q460C or Equivalent
  • Applications: Temporary bridge, platform, gantry frame, float bridge
  • Advantage: Robotic Welding, precise size quality control
W

Workshop & Equipment

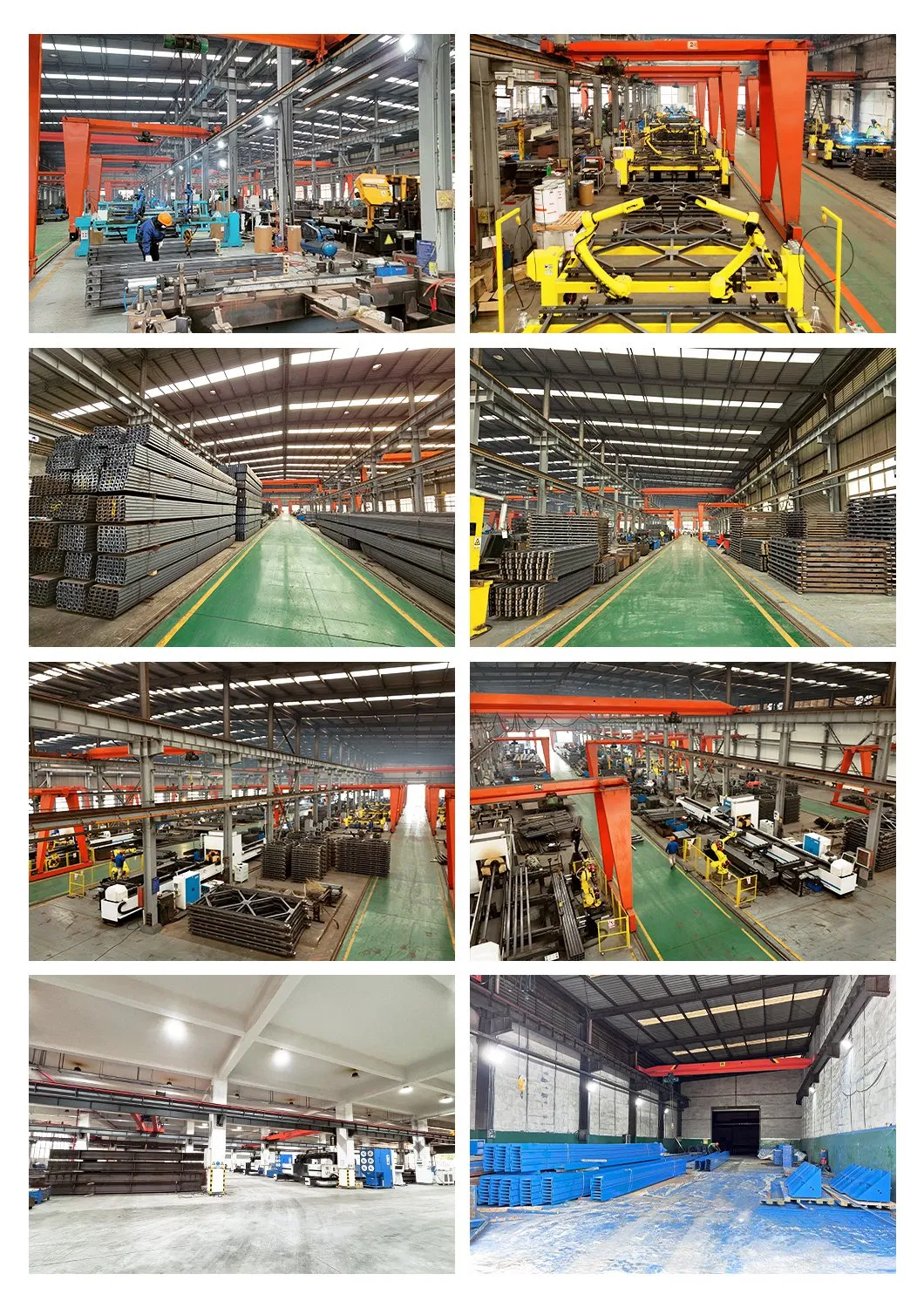

Workshop
Welding Machine
Q

Quality Certificates

Certificate 1
Certificate 2
L

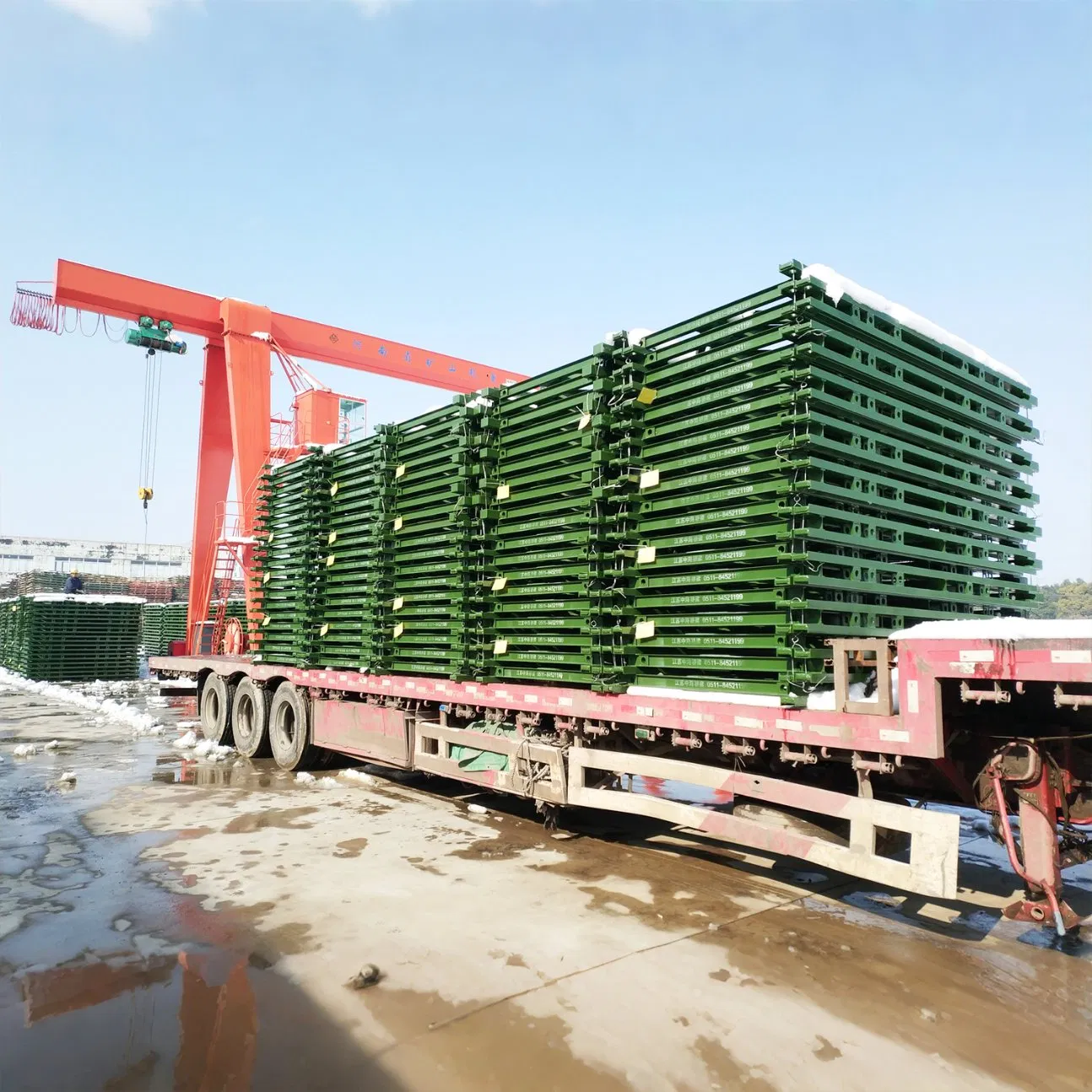

Logistics & Packing

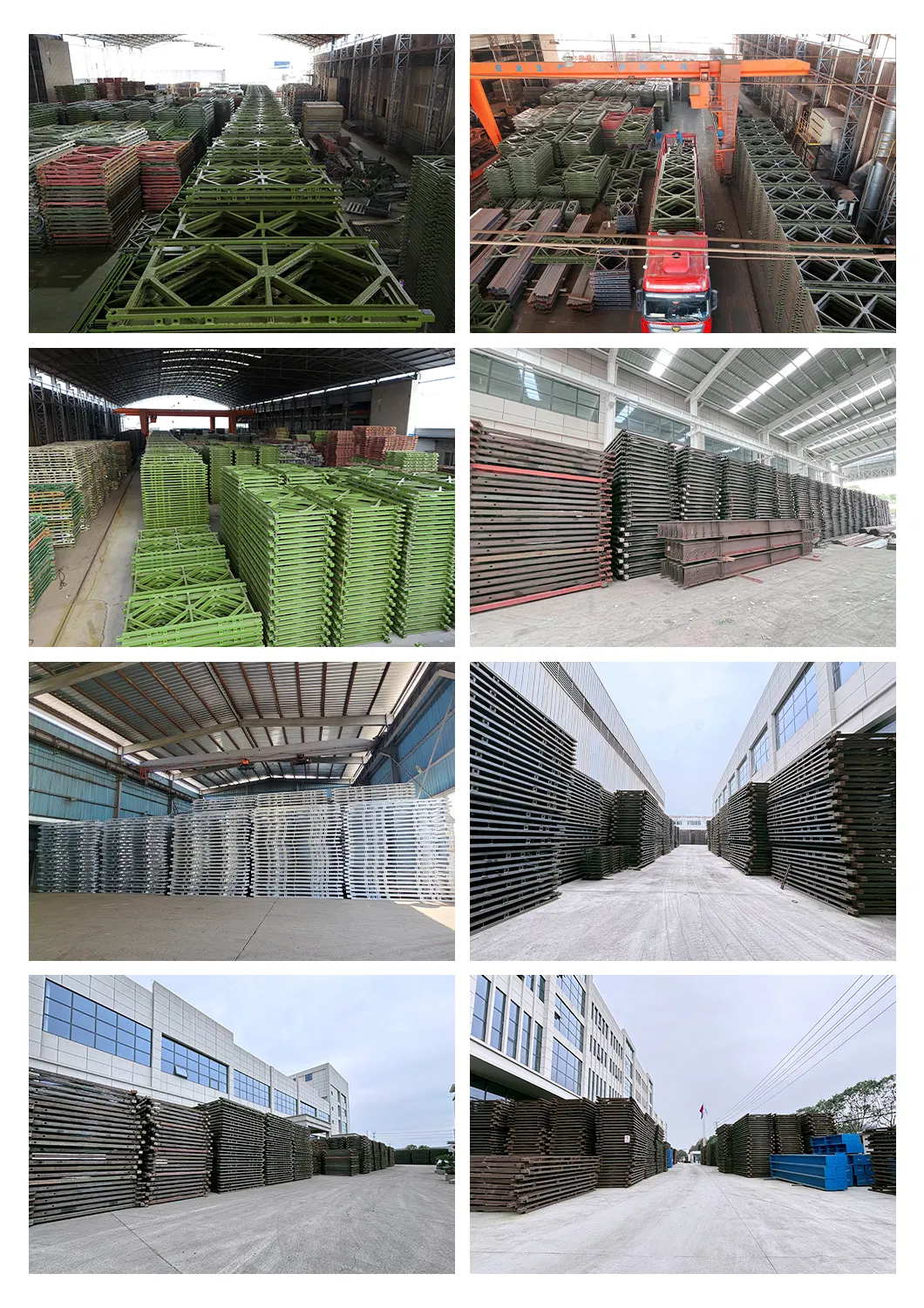

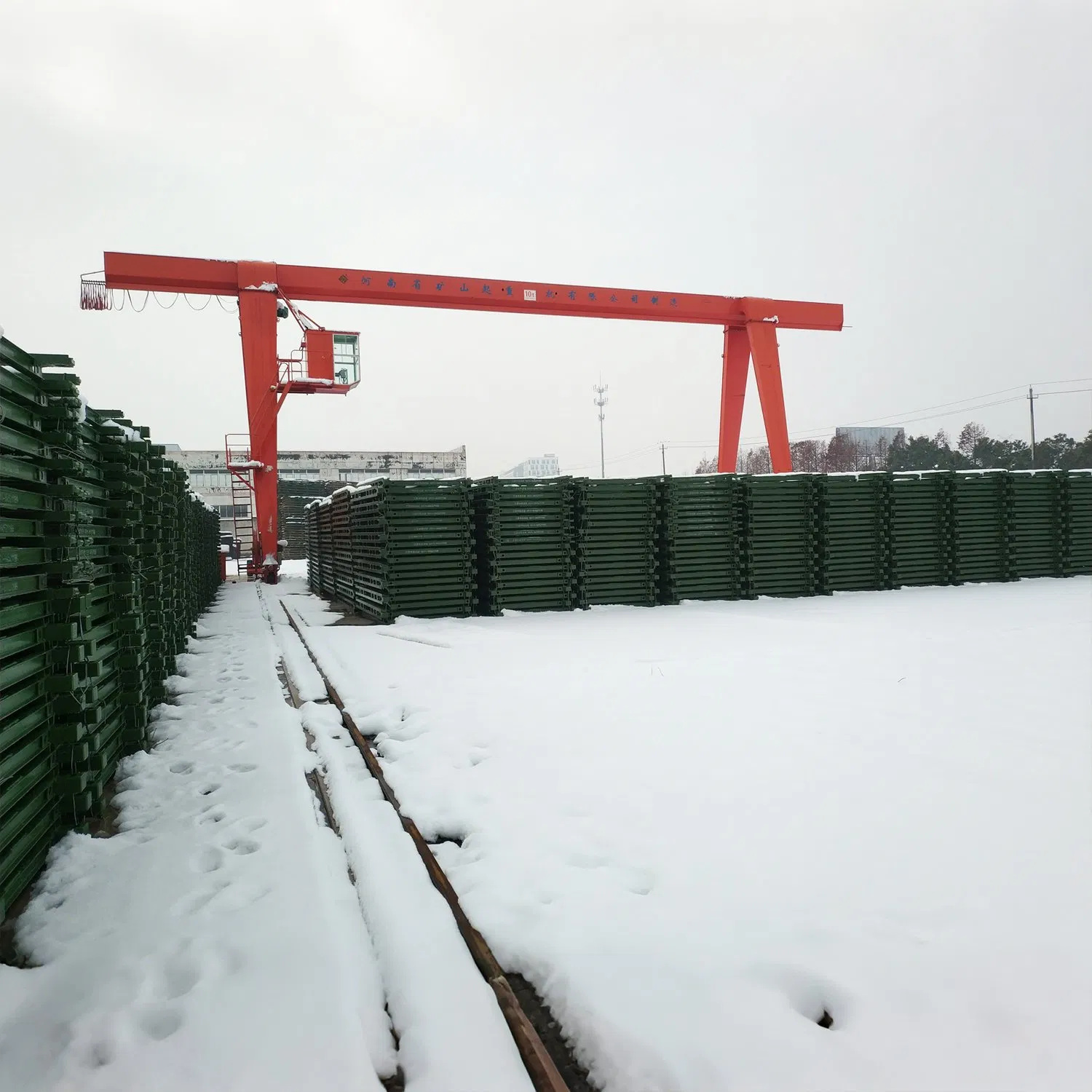

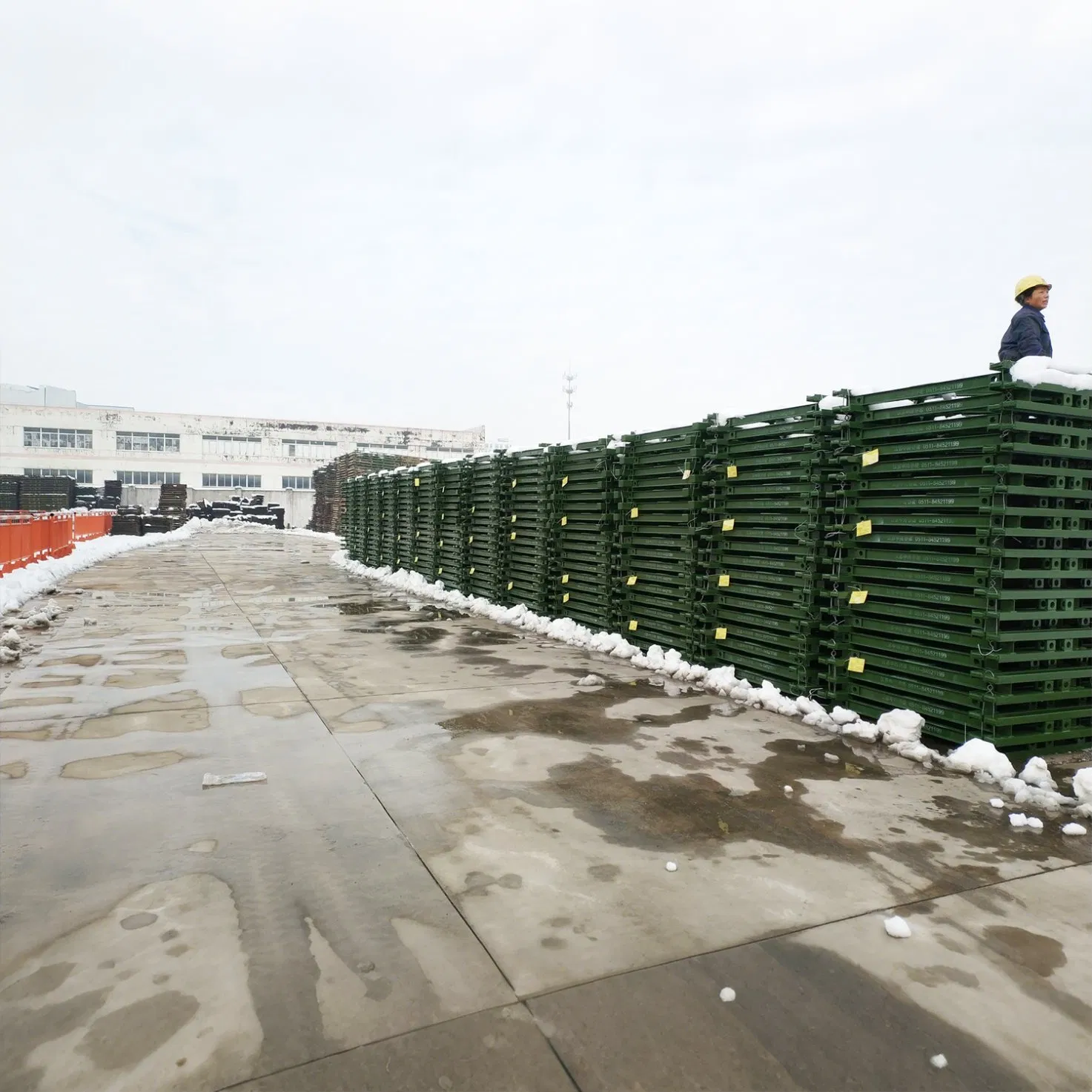

Warehousing
Packing 1

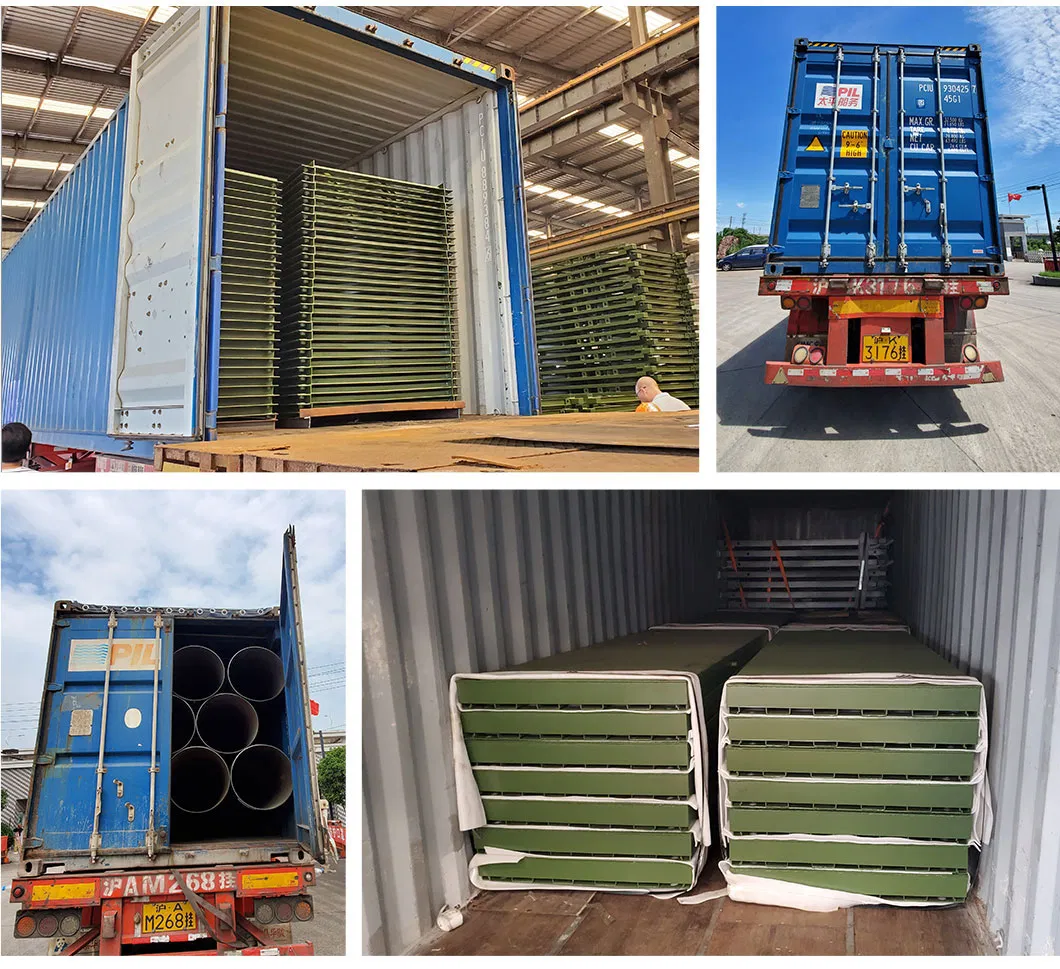

Packing 2
?

Frequently Asked Questions

Q1 Which countries do you export to?
Our products have been exported to dozens of countries including Malaysia, Philippines, Nepal, Canada, Russia, Mozambique, Cambodia, Kenya, Tanzania, Zambia, and many others across Asia, Africa, and Europe.
Q2 Are you a factory or a trade company?
We are an industry and trade company with a production capacity of over 60,000 tons per year. We are a professional manufacturing giant for large Bailey pieces and prefabricated highway steel bridges with 20 years of export experience.
Q3 Do you accept custom processing?
Yes, we have an efficient technical team that can process custom-made non-standard Bailey bridges, steel bridges, and various steel structures based on specific requirements.
Q4 Can your products meet international standards?
Yes, our products meet several international standards including the American AASHTO, British BS5400, and Australian AS5100.
Q5 How soon can I receive a reply after an inquiry?
We provide professional technical feedback within 6 hours. Quotations and preliminary designs are typically provided within 24 hours after technical parameters are communicated.
Q6 Do you provide catalogs or physical samples?
Yes, we can send hard copies of our catalogs via international express. Simply provide your address and contact information to our team.
