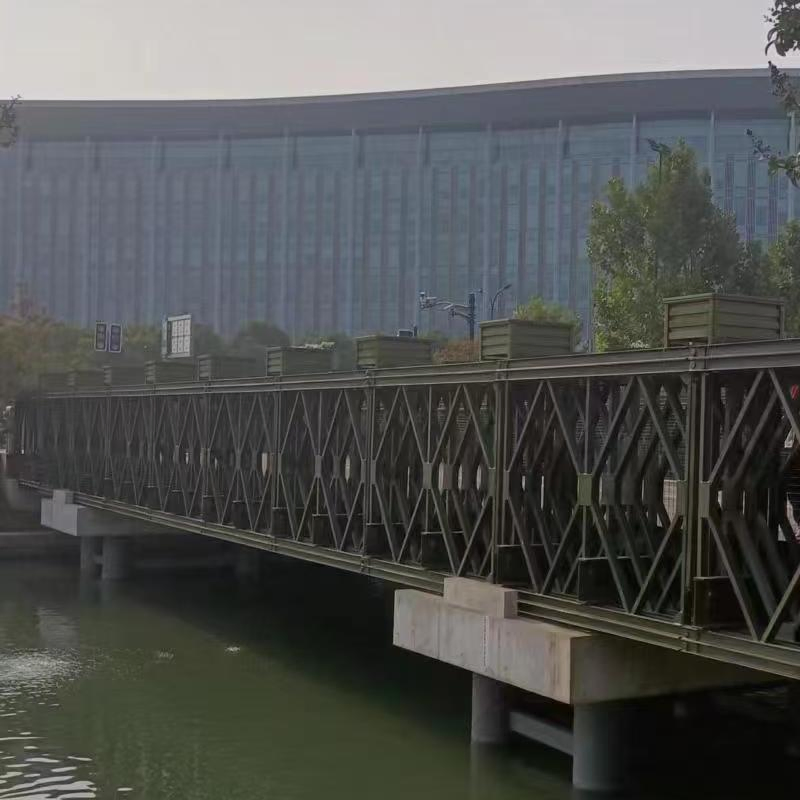

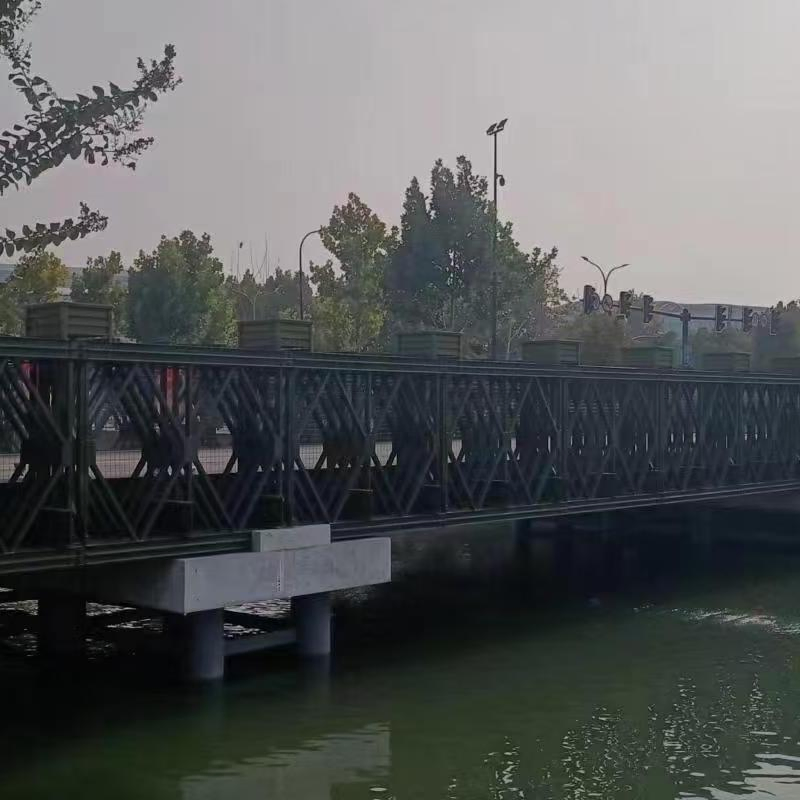

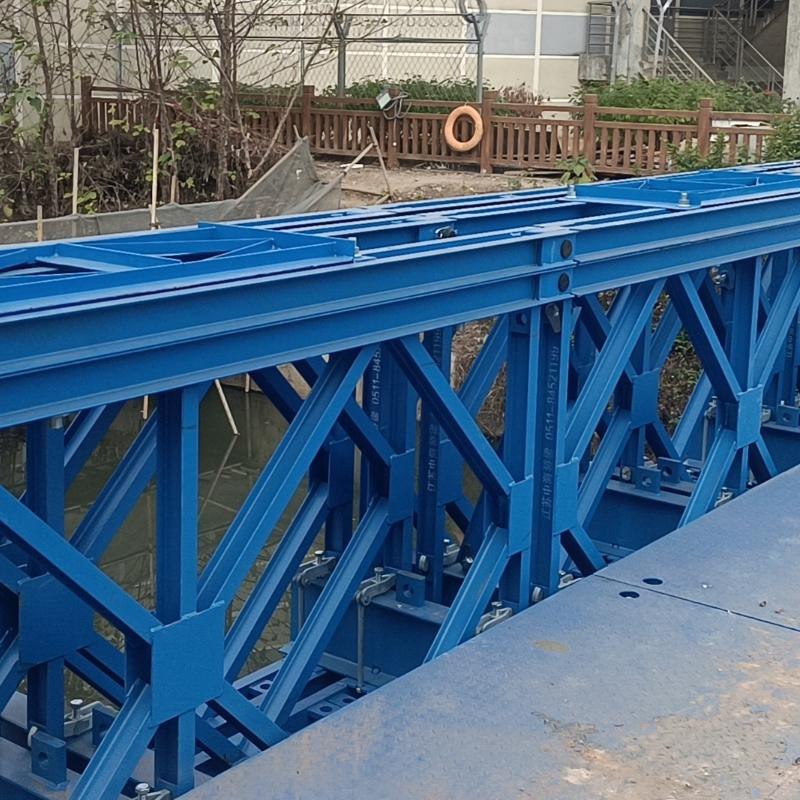

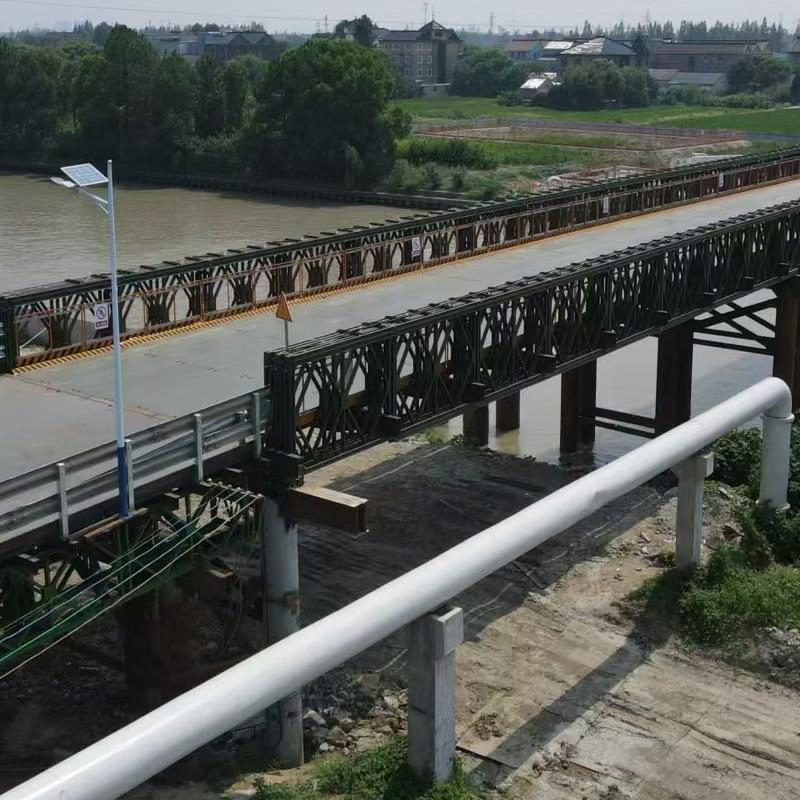

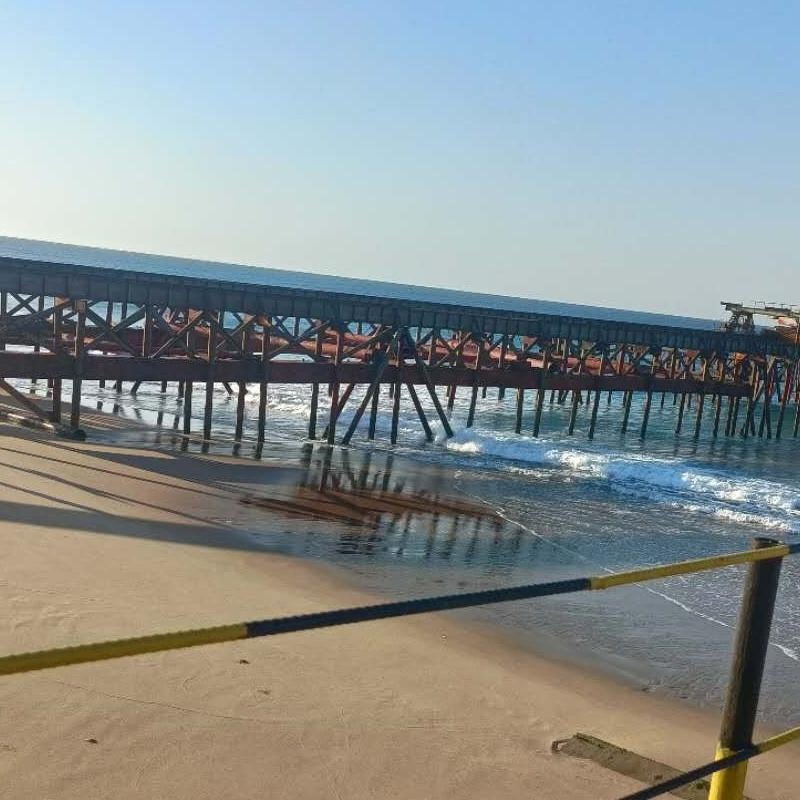

Manufacture CB200 Bailey Bridge Panel for Bridge Construction

Customization:	Available
After-sales Service:	Installation Instructions
Warranty:	6 Months

📋

Basic Specifications

Model NO.

CB200

Certification

GB, ASTM

Life

Semi-Permanent Bridge

Across Way

Open Bridge

Lane Position

Half Through Bridge

Usage

Over Water Bridge, Tractor Bridge, Pontoon, Footbridge, Highway Bridge

Scale

Middle Bridge

Stress Characteristics

Beam Bridge

Material

Steel Bridge

Dimensions

Standard or Customized

Origin

China

HS Code

730810000

🏗️

Manufacture CB200 Bailey Bridge Panel

CB200 Truss Press Limited Table
NO.	Internal Force	Not Reinforced Model				Reinforced Model
NO.	Internal Force	SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1

Geometric Characteristics of Truss Bridge (Half Bridge)
Structure	Model	Chord Area (cm2)	Section Properties (cm3)	Moment of Inertia (cm4)
SS	SS	25.48	5437	580174
SS	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696

⚙️

Technical Specifications

Production Capacity: 60,000 tons/year

Standard: GB, ASTM, DIN, JIS, AISI, BS, SGS, BV

Length: 9.144m to 60.96m (Customizable)

Material Grade: Q355B/Q460C or Equivalent

Application: Temporary bridges, platforms, gantry frames, float bridges, and tower construction.

Advantage: Proven Robotic Welding, high quality, and precise sizing.

📜

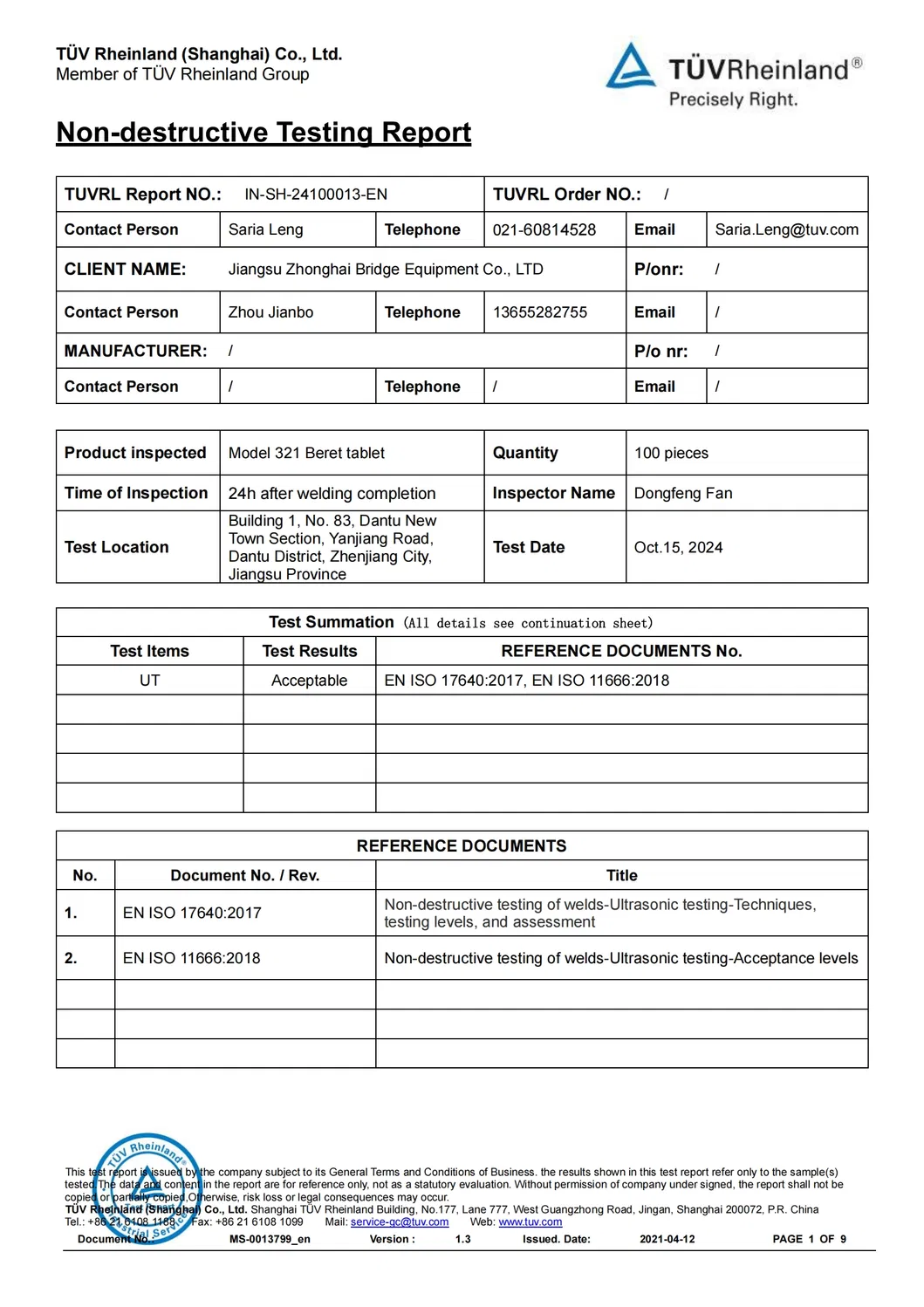

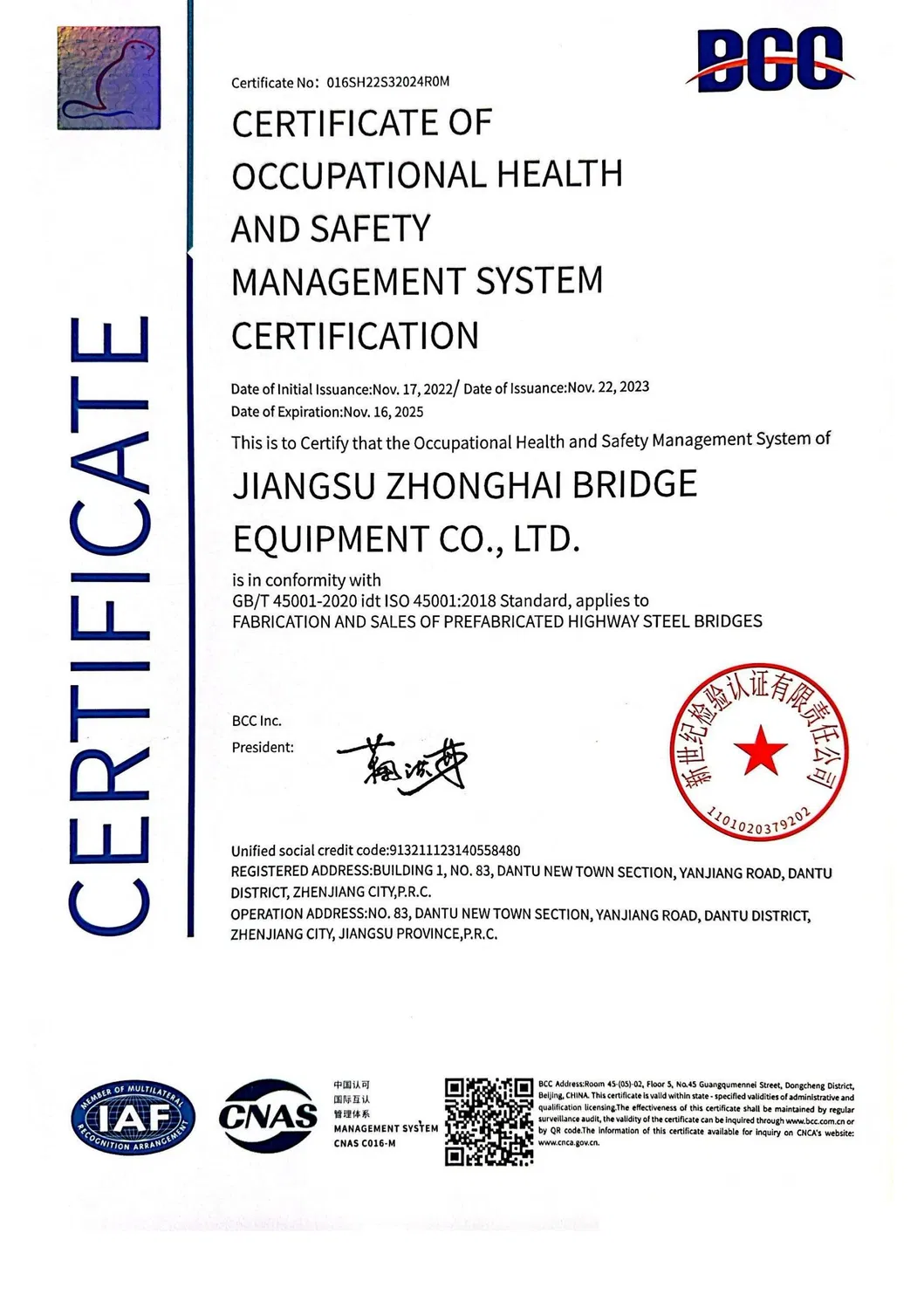

Certificates & Quality Assurance

🏭

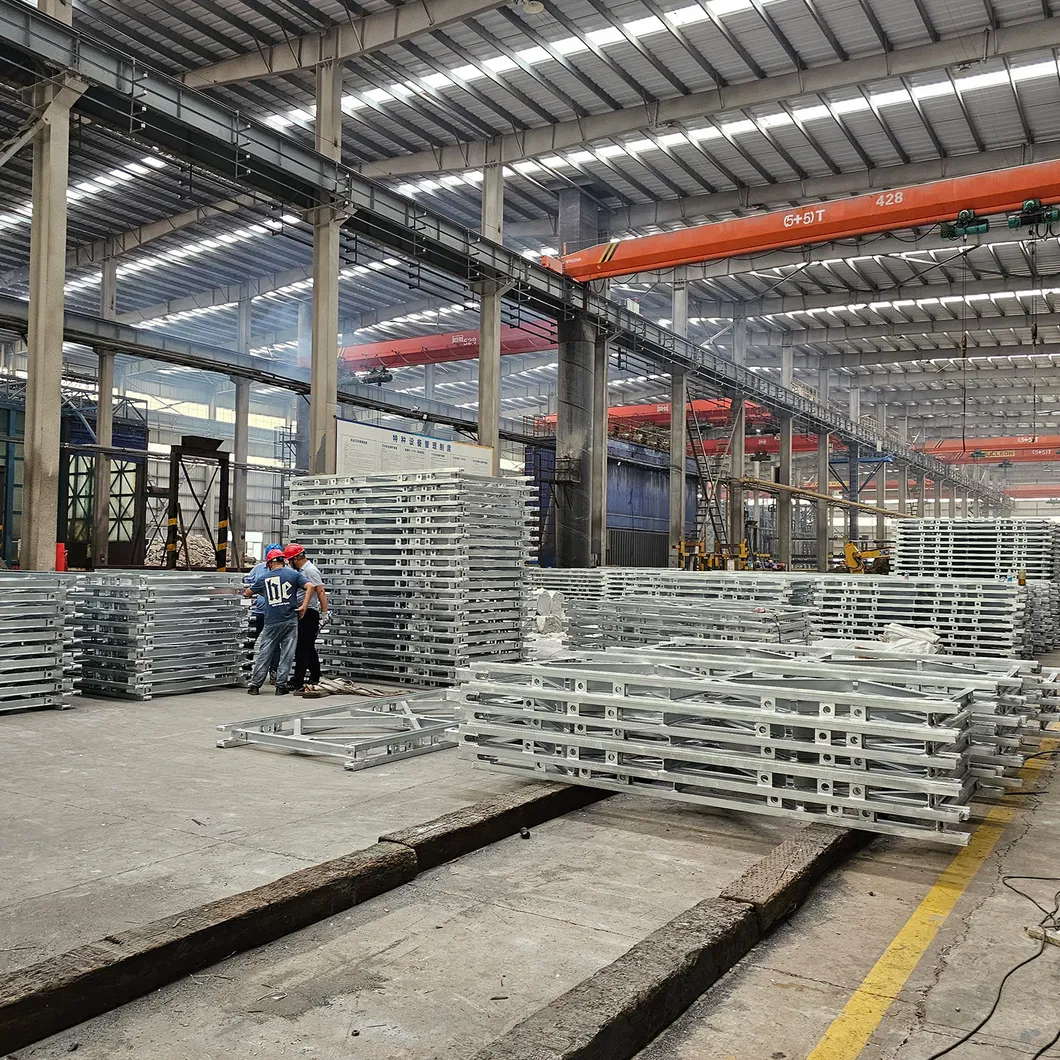

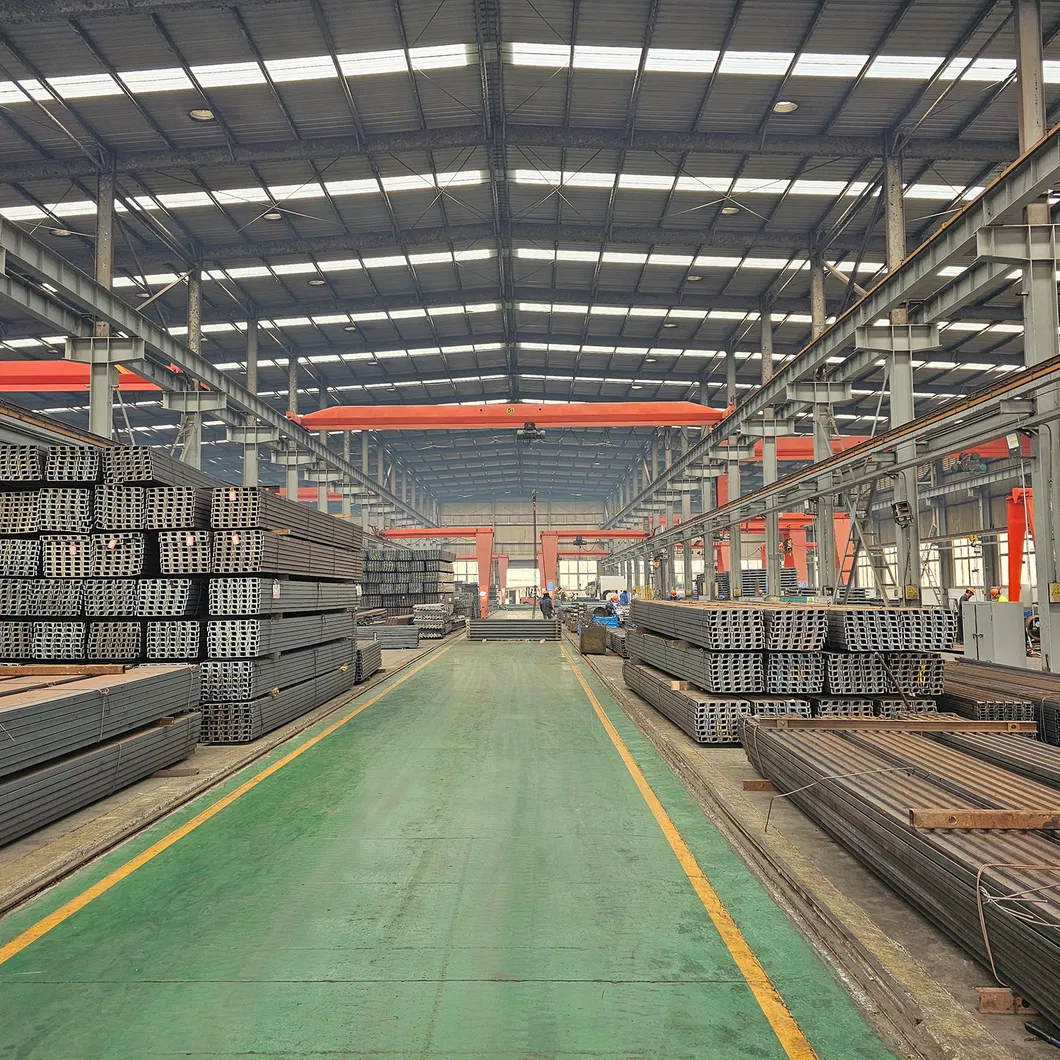

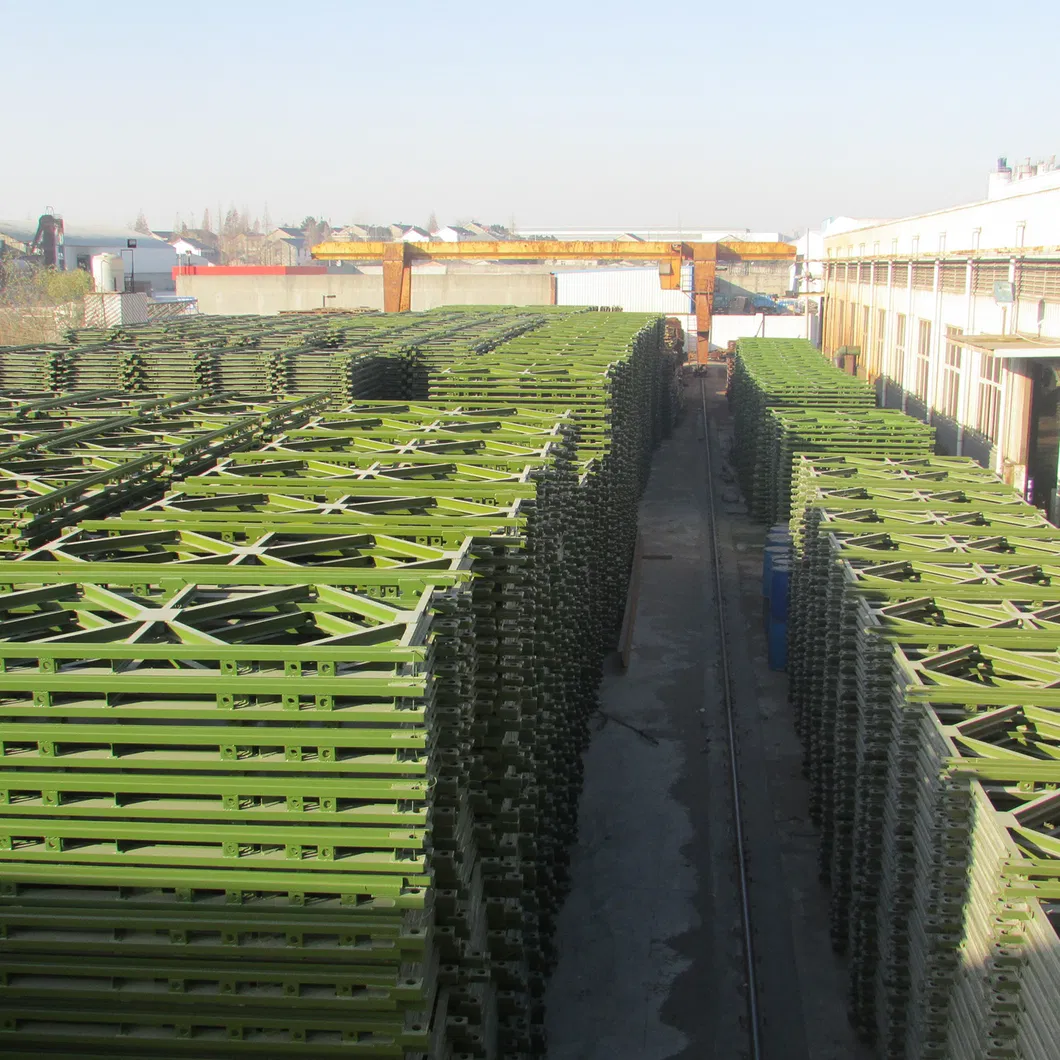

Factory Display

📦

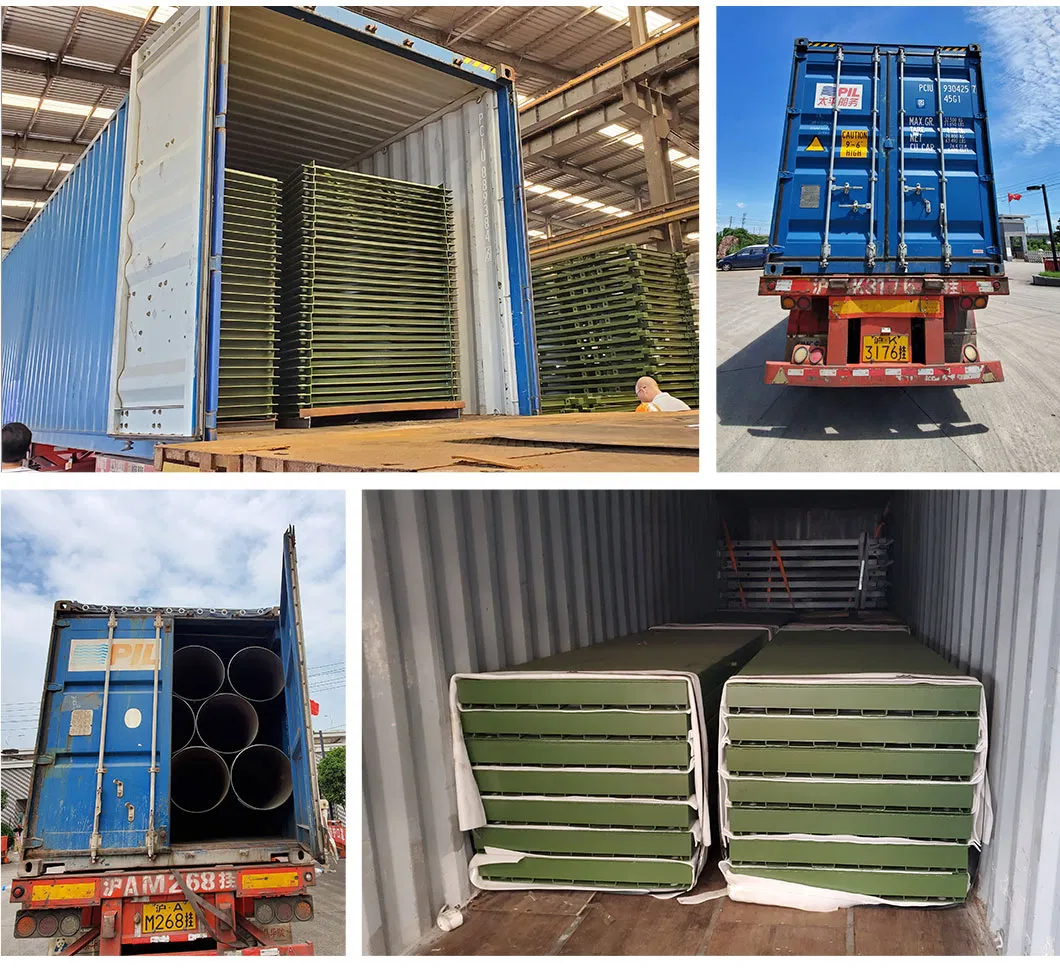

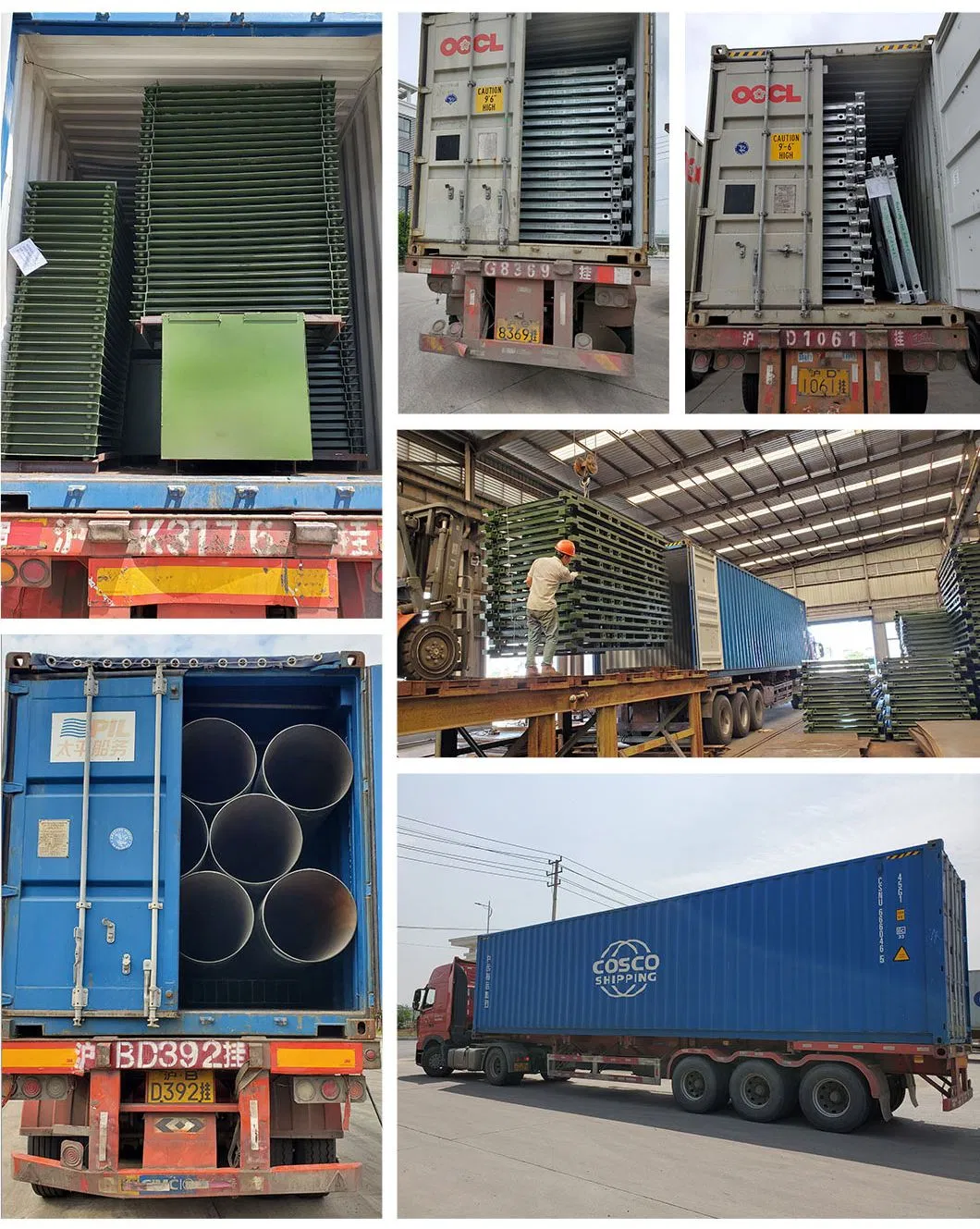

Packing & Transporting

❓

Frequently Asked Questions

01. Which countries do you export to?

Our products have been exported to dozens of countries including Malaysia, Philippines, Nepal, Canada, Russia, Mozambique, Kenya, Tanzania, and many others across Asia, Africa, and Europe.

02. Are you a factory or a trade company?

We are an industry and trade company with a production capacity of over 60,000 tons per year. We are a professional manufacturing giant for large Bailey pieces and prefabricated highway steel bridges with 20 years of export experience.

03. Do you accept custom processing?

Yes, our technical team can process custom-made varieties of non-standard Bailey bridges, steel structures, and specialized steel bridges based on your requirements.

04. Can your products meet international standards?

Yes, our products meet several international standards including the American AASHTO, British BS5400, and Australia AS5100.

05. How soon can I receive a reply after an inquiry?

We provide professional technical feedback within 6 hours of receiving an inquiry. Quotations and preliminary designs are typically provided within 24 hours.

06. Can we become an agent or distributor?

We are actively recruiting powerful partners worldwide for common development and long-term win-win cooperation.
