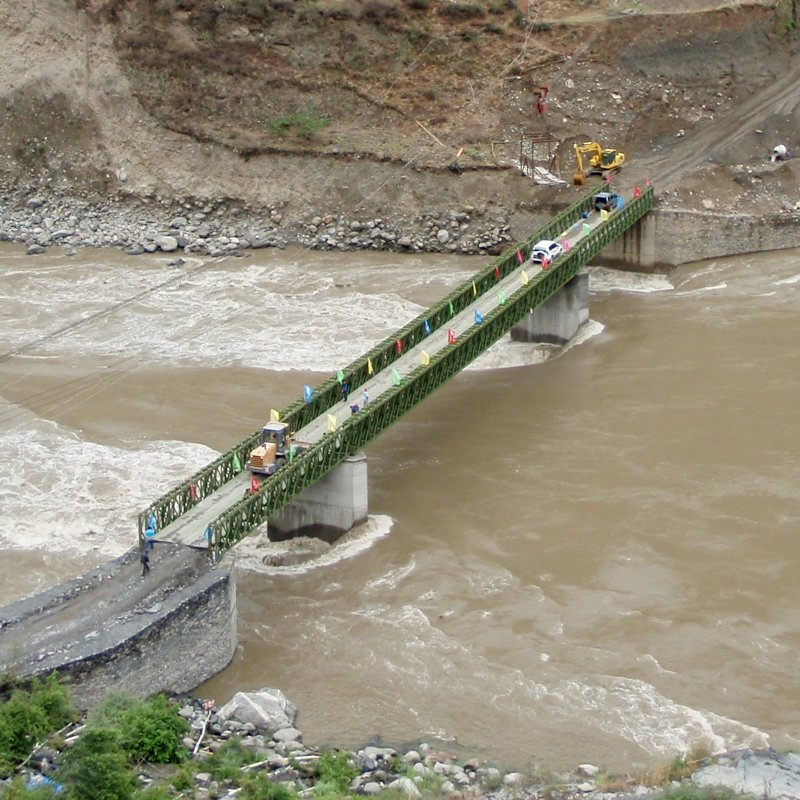

Compact 200 Bailey Steel Bridge Construction Price Professional Pedestrian Panel

Customization: Available
After-sales Service: Installation Instructions
Warranty: Life Time

Product Description

Basic Information
Model NO.
ZB200
Certification
GB, ASTM
Life
Semi-Permanent Bridge
Across Way
Open Bridge
Lane Position
Half Through Bridge
Usage
Over Water Bridge, Tractor Bridge, Pontoon, Highway Bridge
Scale
Middle Bridge
Material
Steel Bridge
Standard
ISO 9001:2008
Product Name
Emergency Bailey Bridge
Packaging & Delivery
Package Size
3042.00cm * 2134.00cm * 176.00cm
Gross Weight
308.000kg
Transport
Naked / Standard Export Packaging
Product Presentation

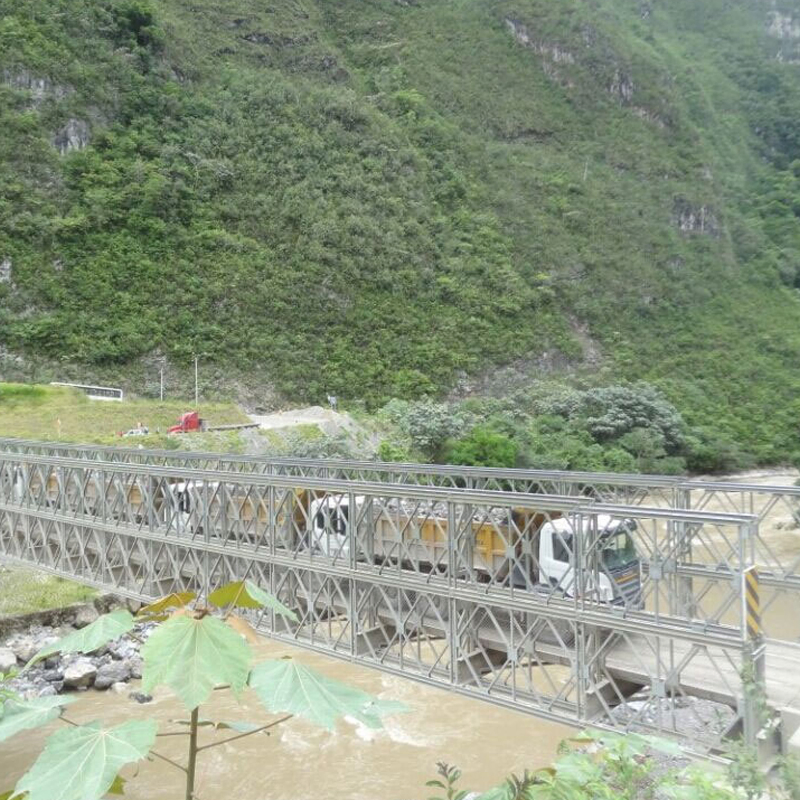

Bailey Steel Bridge 1

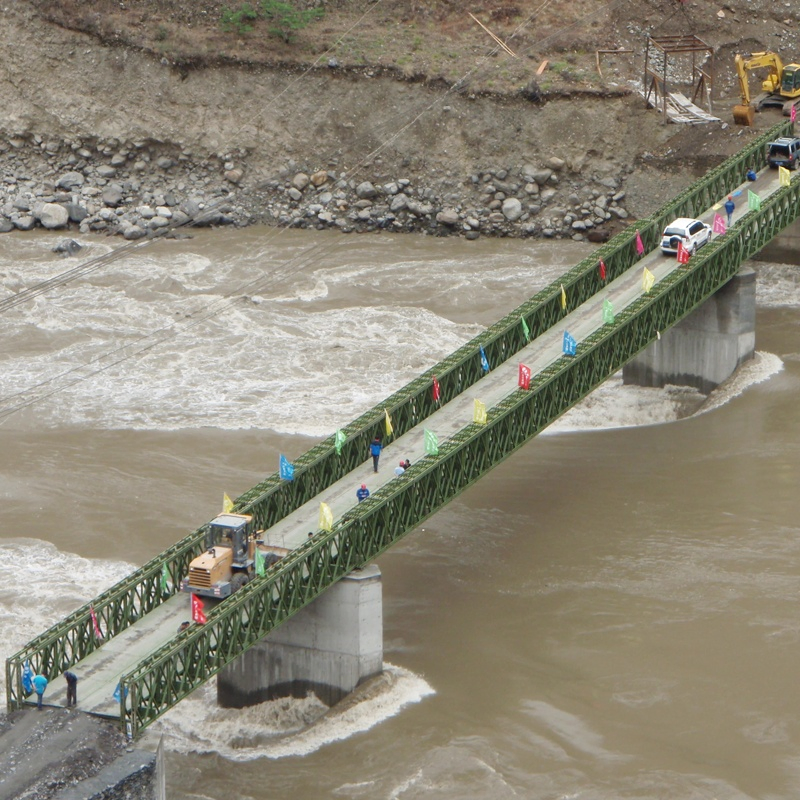

Bailey Steel Bridge 2

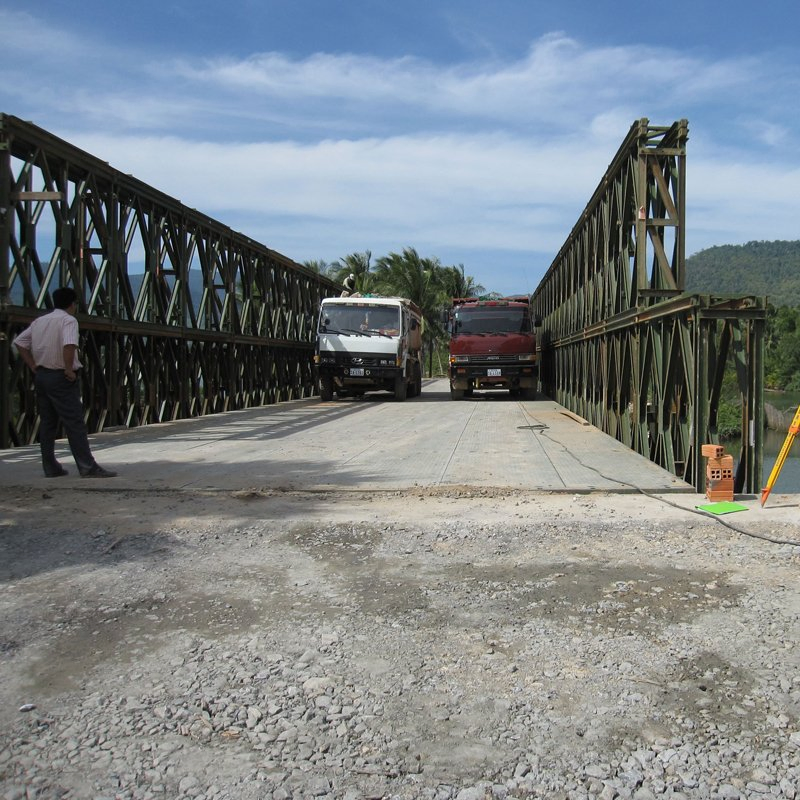

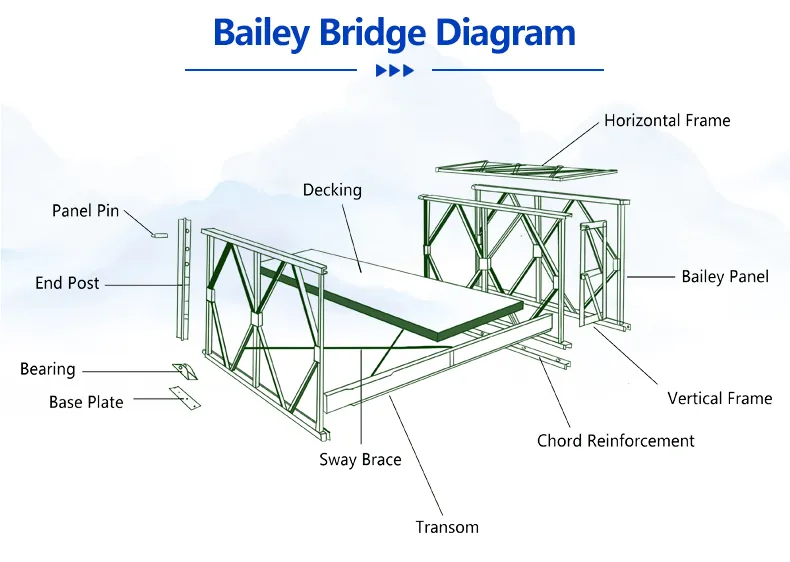

Bailey Steel Bridge Detailed View
Technical Specifications - ZB200 Truss Press
Internal Force Not Reinforced Model Reinforced Model
SSDSTSQS SSRDSRTSRQSR
Standard Truss Moment (kN.m) 1034.32027.22978.83930.3 2165.44244.26236.48228.6
Standard Truss Shear (kN) 222.1435.3639.6843.9 222.1435.3639.6843.9
Structure 1
Structure 2
Structure 3
Geometric Characteristics (Half Bridge)
Structure Type Chord Area (cm2) Section Properties (cm3) Moment of Inertia (cm4)
SSSS25.485437580174
SSR50.96108751160348
DSDS50.96108751160348
DSR176.44163121740522
DSR2101.92217502320696
Project 1
Project 2
Project 3
Project 4
Final Product View
Our Professional Service Flow
1
Professional advice and explicit explanation provided by customer service representatives.
2
Excellent engineers arranged to keep in close touch to meet exact requirements.
3
Detailed guidance on product usage and necessary technical services.
4
Thorough inspection of bridge products to solve any process-related issues.
5
Feedback and business follow-up via online service platforms to ensure satisfaction.
Frequently Asked Questions
What type of manufacturer are you?
We are a specialized steel bailey bridge manufacturer with leading manufacturing processes in China, holding international Quality System Certification ISO9001:2015. We have over 20 years of experience serving markets worldwide, including Southeast Asia, Africa, and South America.
Are you a factory or a trade company?
We are a factory equipped with six production lines and various machines to fabricate steel bridge parts and other steel structures, holding a full exporting license for global markets.
How do you manage quality control?
We maintain strict quality control throughout the process, meeting standards such as CMA, CNAS, ISO9001, Grade I road, and international loading standards like America HS25 and British HA.
What is the primary material used for these bridges?
The bridges are primarily constructed using high-quality structural steel, designed for durability and strength to serve as semi-permanent or emergency structures.
Where is your primary loading port?
We can ship from any port in China, though our main loading port for international exports is Shanghai Port.
What payment methods do you accept?
We accept various standard payment terms including L/C (Letter of Credit), T/T (Telegraphic Transfer), and Escrow services.
