Basic Information
Usage
Over Water Bridge, Tractor Bridge, Pontoon, Footbridge, Highway Bridge
Stress Characteristics
Beam Bridge
Supply Ability
10000 Ton/Tons Per Year
Packaging & Delivery
Package Size
3042.00cm * 2134.00cm * 176.00cm
Packing
40' Standard HQ Containers
Product Description
Technical Specification: ZB200 Truss Press Limited
| Internal Force |
Not Reinforced Model |
Reinforced Model |
| SS |
DS |
TS |
QS |
SSR |
DSR |
TSR |
QSR |
| Truss Moment (kN.m) |
1034.3 |
2027.2 |
2978.8 |
3930.3 |
2165.4 |
4244.2 |
6236.4 |
8228.6 |
| Truss Shear (kN) |
222.1 |
435.3 |
639.6 |
843.9 |
222.1 |
435.3 |
639.6 |
843.9 |
Geometric Characteristics (Half Bridge)
| Structure |
Geometric Characteristics |
Chord Area (cm2) |
Section Properties (cm3) |
Moment of Inertia (cm4) |
| SS |
SS |
25.48 |
5437 |
580174 |
| SSR |
50.96 |
10875 |
1160348 |
| DS |
DS |
50.96 |
10875 |
1160348 |
| DSR1 |
76.44 |
16312 |
1740522 |
| DSR2 |
101.92 |
21750 |
2320696 |
Service Flow
1
Professional customer service representation providing expert advice and explicit explanations.
2
Direct coordination with excellent engineers to meet your exact requirements at all times.
3
Detailed instructions and guidance on product usage provided by our technical team.
4
Thorough inspection of bridge products to resolve any issues arising during the process.
5
Full business follow-up via our online service platform to ensure total satisfaction.
Frequently Asked Questions
What kind of manufacturer are you?

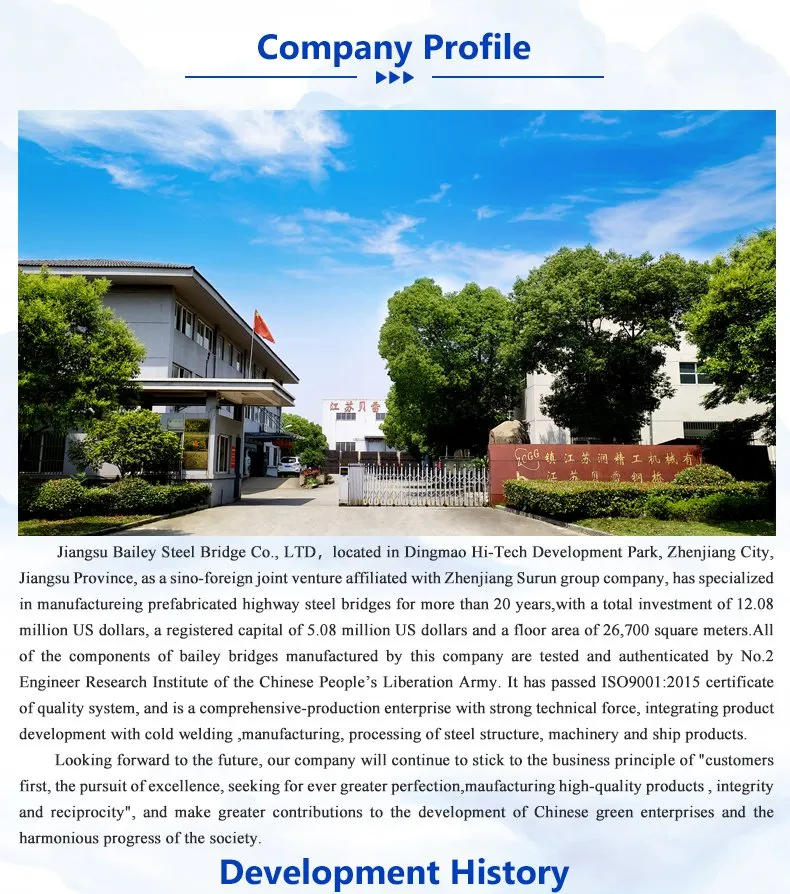

We are a specialized steel bailey bridge manufacturer with over 20 years of experience. We hold the ISO9001:2015 International Quality System Certification and serve as a cooperation partner with leading research institutions.
Do you have your own production facilities?

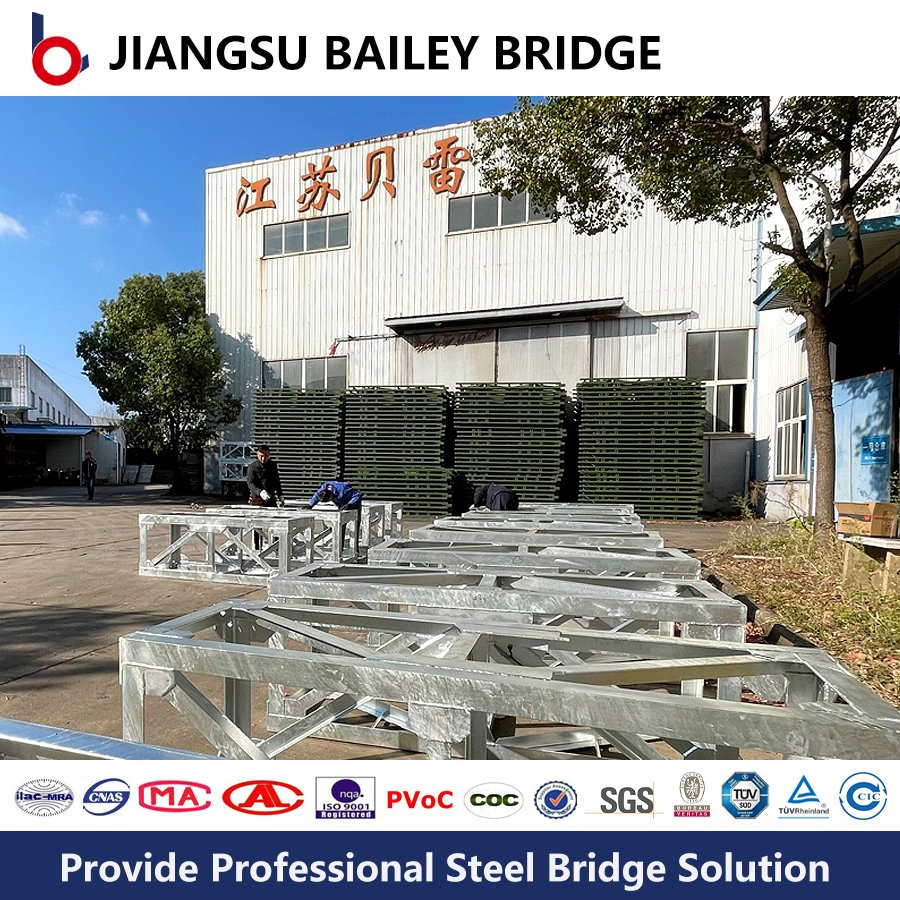

Yes, we operate a factory with six production lines and various machinery specifically for fabricating steel bridge parts and other steel structures. We also hold a full exporting license for global markets.
How do you ensure quality control?
Quality is managed from start to finish. Our products meet standards including CMA, CNAS, ISO9001, Grade I road, Grade A urban road, American loading standard HS25, and British loading standard HA.
Where is the main loading port for shipping?
While we can use any port in China, our primary loading port is Shanghai port due to its international logistics efficiency.
What materials are used in the ZB200 bridge?
The bridge is primarily constructed from high-quality steel (Steel Bridge material), designed for semi-permanent or temporary use in various terrains.
What is your annual production capacity?
Our facility has a production capacity of approximately 10,000 tons or 10,000 pieces per year, allowing us to handle large-scale infrastructure projects.
