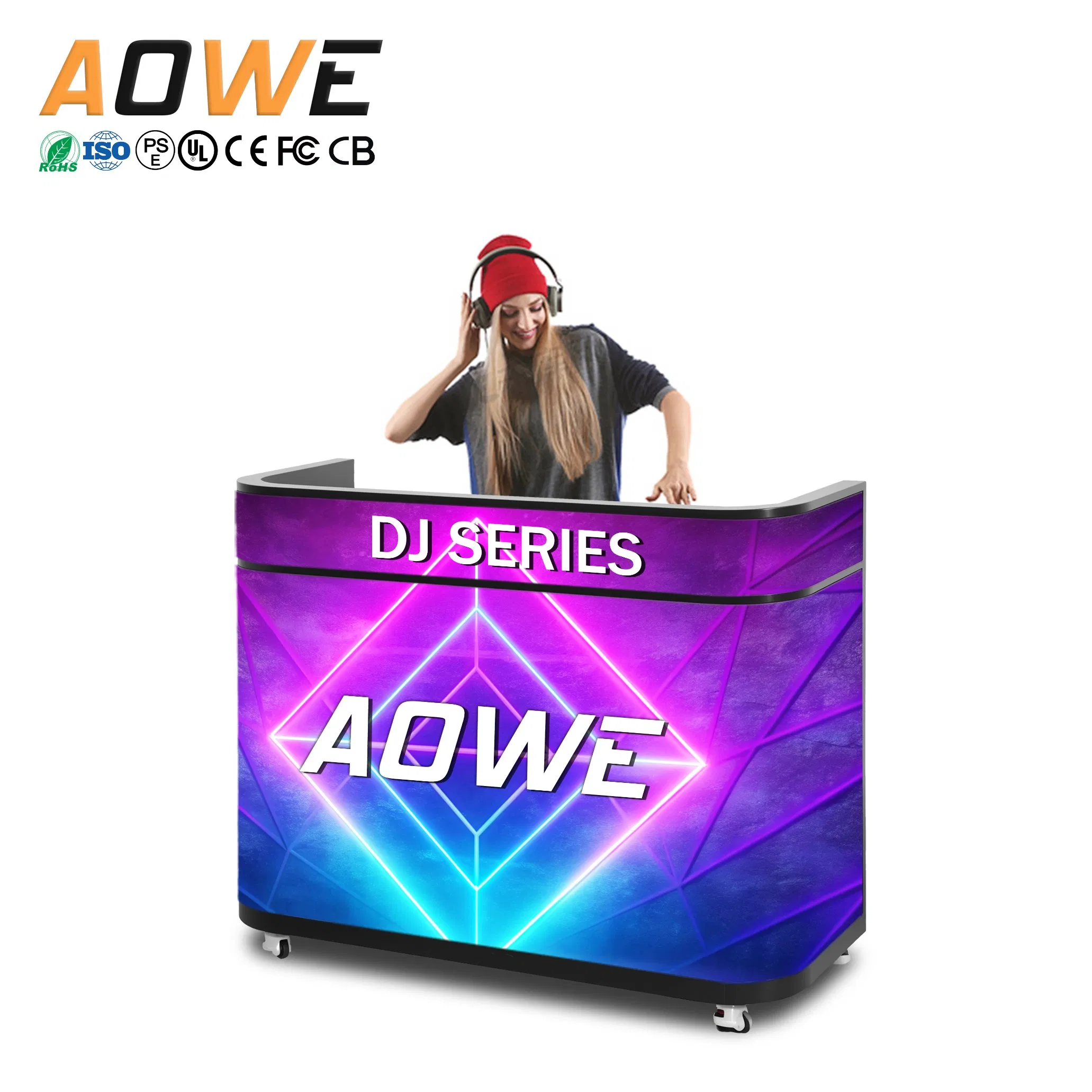

P2 P1.86 LED DJ Booth LED Video Display for Music Festivals Customizable Shaped DJ Booth Table LED Display Screen

Customization: Available
Application: Indoor AD Player, Indoor
Screen Size: 2.24mx0.96m/Customized

Product Description

Basic Specifications
Model NO.
P2.5
Installation
All-in-One
Type
LED Screen
Screen Tech
LED
Interface
HDMI
OS
Windows
Product Name
DJ Table LED Screen
LED Chip
Nationstar/Kinglight
Brightness
800 CD/M2
Material
Iron
Refresh Rate
3840Hz-7680Hz
Warranty
3 Years

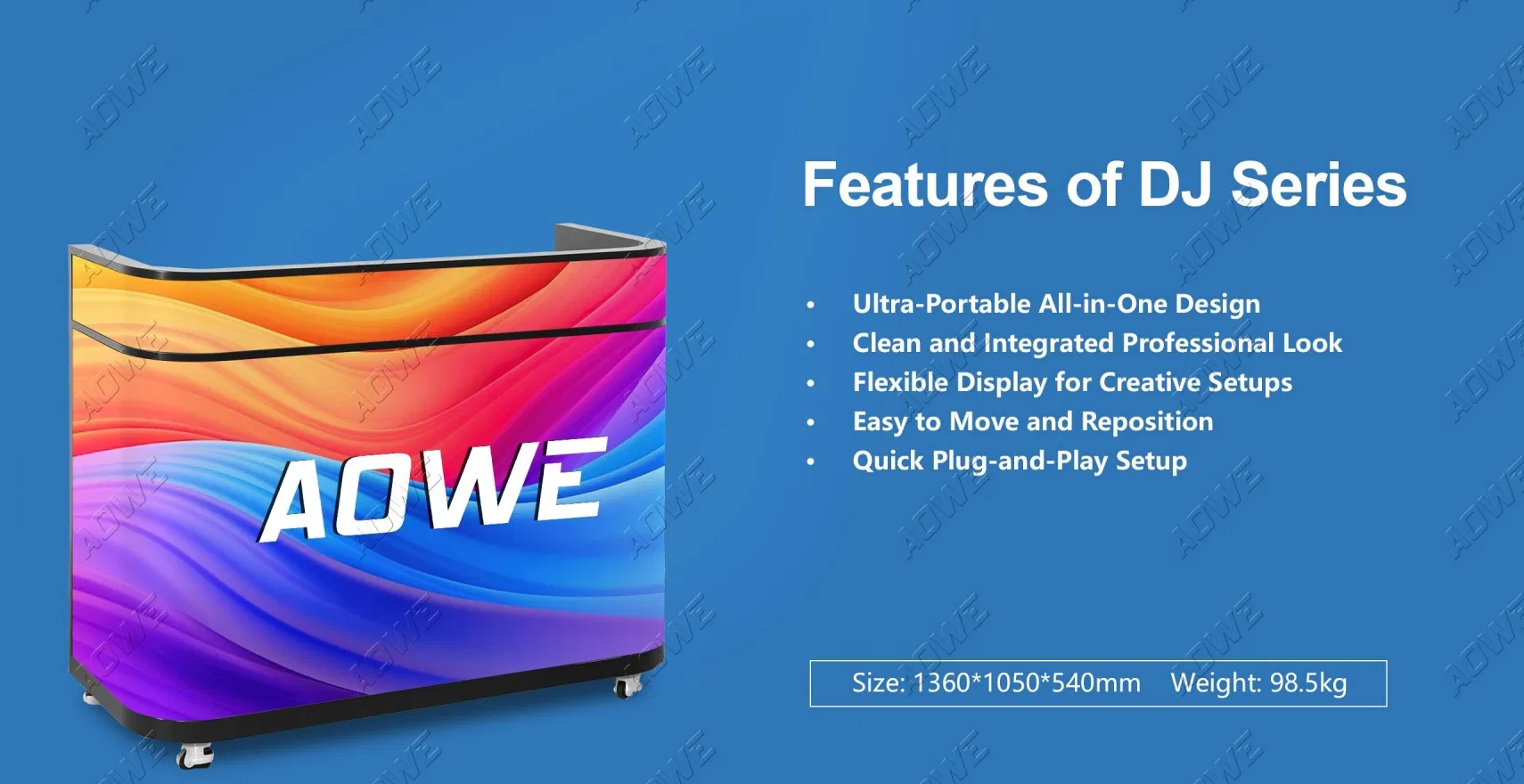

DJ Booth LED Display Solution
All in one solution, your best choice for stage
📺

What is an LED Display DJ Booth?

At its core, it is a professional performance structure—often modular and custom-built—that integrates high-resolution LED panels directly into its framework. These panels wrap around the DJ, covering the front, sides, and even the ceiling or floor of the booth. Controlled in real-time, they display reactive visuals, branding, hypnotic patterns, and stunning animations that sync perfectly with the beat.

⚙️

Key Features & Components

  • High-Resolution LED Panels: Pixel-pitch screens (e.g., P2.5, P3) ensure crisp, clear images even up close.
  • Structural Frame: Sturdy, lightweight aluminum frame designed for safety, ease of transport, and quick assembly.
  • Technical Performance: High refresh rates (3840Hz+) to prevent camera flicker and high brightness for visibility.
Technical Parameters
Pixel pitch 1.25mm 1.53mm 1.86mm 2.0mm 2.5mm
Module size 160*320mm 160*320mm 160*320mm 160*320mm 160*320mm
Module resolution 128*256px 104*208px 86*172px 80*160px 64*128px
Refresh rate 3,840Hz 3,840-7,680Hz 3,840-7,680Hz 3,840-7,680Hz 3,840-7,680Hz
Brightness 600-800cd/㎡ 600-800cd/㎡ 600-800cd/㎡ 600-800cd/㎡ 600-800cd/㎡
Scan 1/64 1/52 1/43 1/40 1/32
Frequently Asked Questions
What is the pixel pitch available for the DJ booth?
We offer a wide range of pixel pitches including 1.25mm, 1.53mm, 1.86mm, 2.0mm, and 2.5mm to suit different viewing distances and resolution requirements.
How does the screen handle camera filming during live events?
With a high refresh rate of 3840Hz up to 7680Hz, our LED displays ensure a flicker-free experience even when captured by professional high-speed cameras.
Can the DJ Booth LED screen be customized?

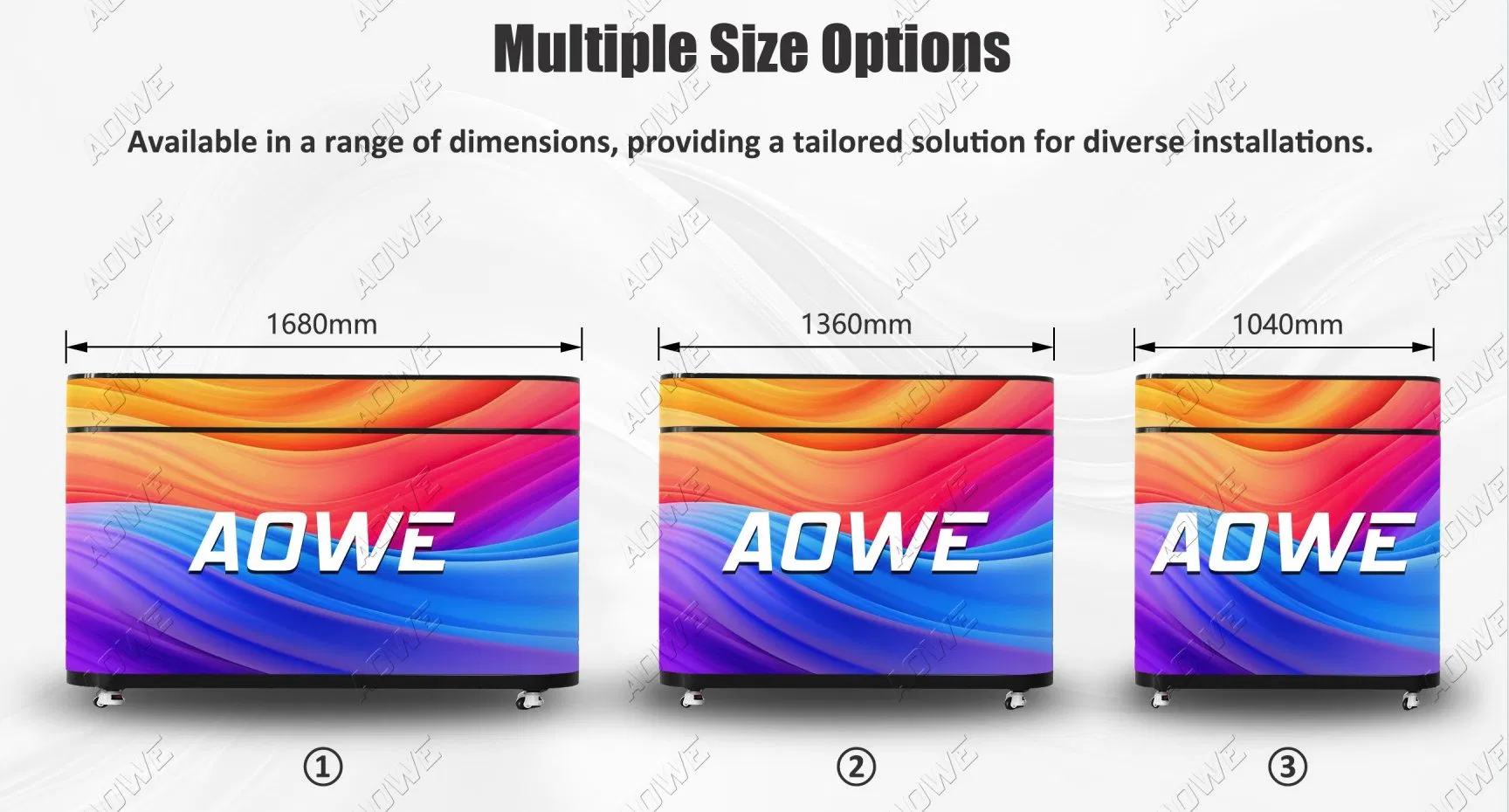

Yes, the system supports custom shapes and sizes, including curved, angled, or multi-tiered configurations to fit your specific stage design.

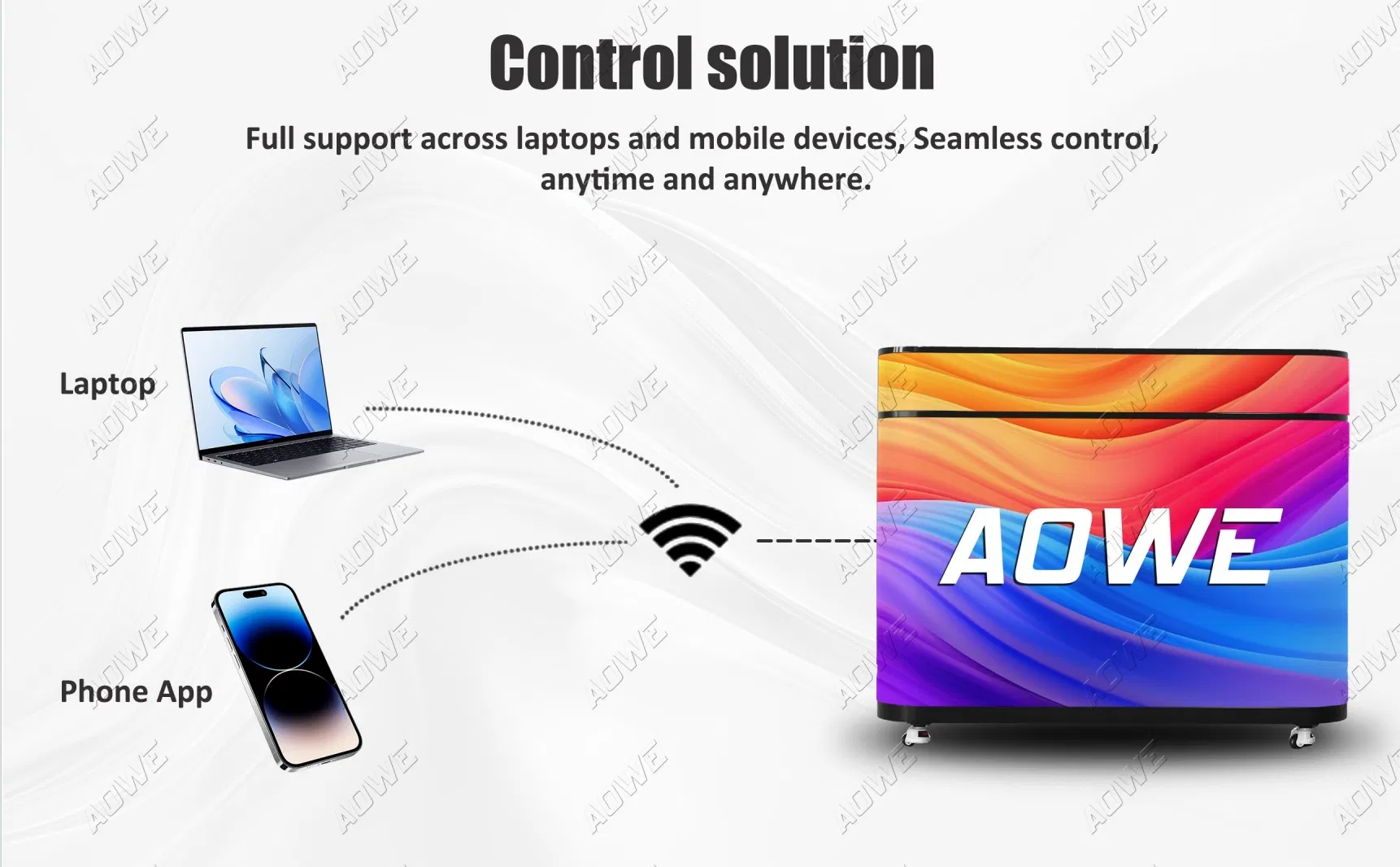

What control systems are compatible with this display?
The display is designed for real-time control via Windows-based systems and supports standard interfaces like HDMI, as well as DMX or Art-Net for synchronized visuals.
What is the expected lifespan and warranty?
Our DJ Booth LED displays come with high-quality Nationstar or Kinglight LED chips and include a 3-year warranty for peace of mind.
Is the installation difficult for touring events?
The booth features a lightweight aluminum structural frame designed for rapid assembly and ease of transport, making it an ideal choice for rental and touring music festivals.
